sunnyisles_north
outputs_sunnyisles_smallmask/pic
config.json
{
general: {
input_path: "inputs/",
output_path: "outputs/",
num_cores: 10,
num_patches: 1,
apply_temporal_unwrapping: true,
spatial_unwrapping_method: "puma",
logging_level: "INFO",
logfile_path: "logfiles/",
},
phase_linking: {
use_phase_linking_results: false,
inverted_path: "inverted/",
num_siblings: 20,
mask_phase_linking_file: "",
use_ps: false,
mask_ps_file: "maskPS.h5",
},
preparation: {
start_date: null,
end_date: null,
ifg_network_type: "sb",
num_ifgs: 3,
max_tbase: 100,
filter_window_size: 9,
},
consistency_check: {
coherence_p1: 0.8,
grid_size: 0,
mask_p1_file: "masks/maskPoly_3.h5",
num_nearest_neighbours: 50,
max_arc_length: null,
velocity_bound: 0.1,
dem_error_bound: 250.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.6,
min_num_arc: 3,
},
unwrapping: {
use_arcs_from_temporal_unwrapping: true,
},
filtering: {
coherence_p2: 0.8,
apply_aps_filtering: true,
interpolation_method: "kriging",
grid_size: 1000,
mask_p2_file: "",
use_moving_points: true,
max_temporal_autocorrelation: 0.3,
},
densification: {
num_connections_to_p1: 5,
max_distance_to_p1: 2000,
velocity_bound: 0.15,
dem_error_bound: 100.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
},
}
../../subset_sarvey.log
2025-06-18 16:30:41 subset_sarvey.bash inputs/slcStack.h5 --lat 25.937 25.958 --lon -80.124 -80.118 --outdir ../sunnyisles_north
sarvey_2025-06-18-17-23-11.log
2025-06-18 17:23:11,735 - INFO - SARvey version: 1.2.0 - Strawberry Pie, 2025-02-19_01, Run: MTInSAR
2025-06-18 17:23:11,736 - INFO - Parameter value default
2025-06-18 17:23:11,736 - INFO - _________ _____ _______
2025-06-18 17:23:11,736 - INFO - input_path inputs/ inputs/
2025-06-18 17:23:11,736 - INFO - output_path /Users/emirhan/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/sunnyisles_north/outputs <--- outputs/
2025-06-18 17:23:11,736 - INFO - num_cores 10 <--- 50
2025-06-18 17:23:11,736 - INFO - num_patches 1 1
2025-06-18 17:23:11,737 - INFO - apply_temporal_unwrapping True True
2025-06-18 17:23:11,737 - INFO - spatial_unwrapping_method puma puma
2025-06-18 17:23:11,737 - INFO - logging_level INFO INFO
2025-06-18 17:23:11,737 - INFO - logfile_path logfiles/ logfiles/
2025-06-18 17:23:11,737 - INFO -
2025-06-18 17:23:11,737 - INFO - ---------------------------------------------------------------------------------
2025-06-18 17:23:11,737 - INFO - STEP 2: UNWRAPPING
2025-06-18 17:23:11,737 - INFO - ---------------------------------------------------------------------------------
2025-06-18 17:23:11,737 - INFO - Parameter value default
2025-06-18 17:23:11,737 - INFO - _________ _____ _______
2025-06-18 17:23:11,737 - INFO - use_arcs_from_temporal_unwrapping True True
2025-06-18 17:23:11,737 - INFO -
2025-06-18 17:23:11,764 - INFO - read from /Users/emirhan/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/sunnyisles_north/outputs/p1_ifg_wr.h5
2025-06-18 17:23:11,823 - INFO - Integrate parameters from arcs to points.

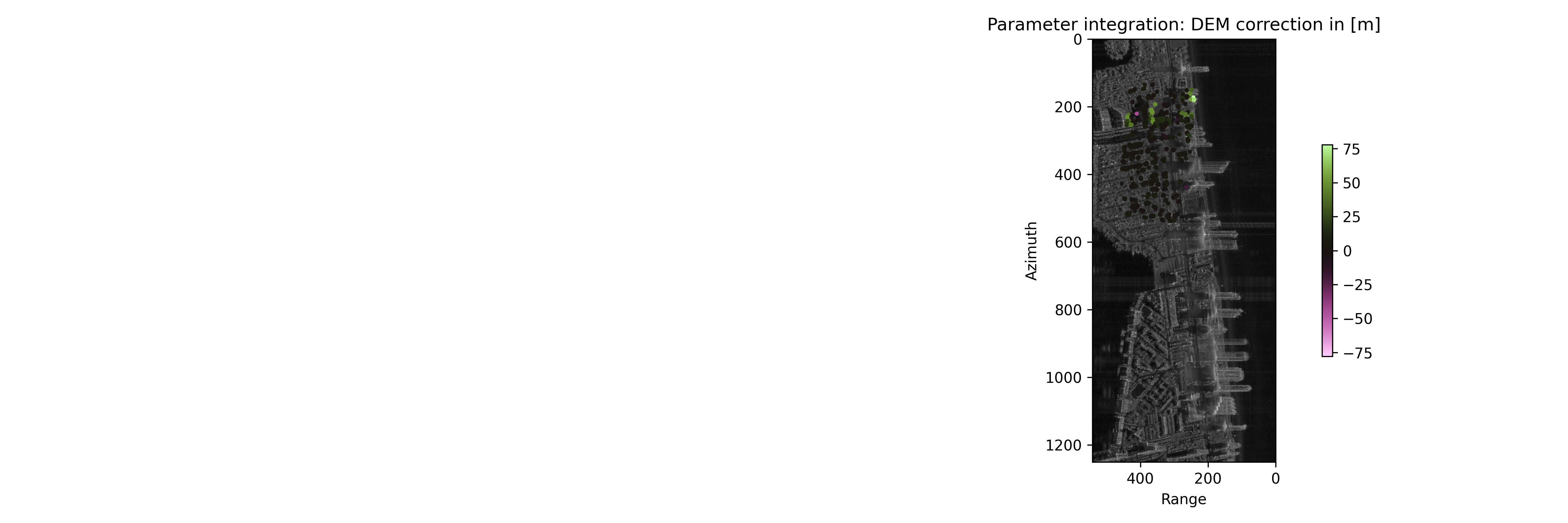

2025-06-18 17:23:11,823 - INFO - Integrate DEM correction.
2025-06-18 17:23:12,460 - DEBUG - time used: 00 mins 0.0 secs.

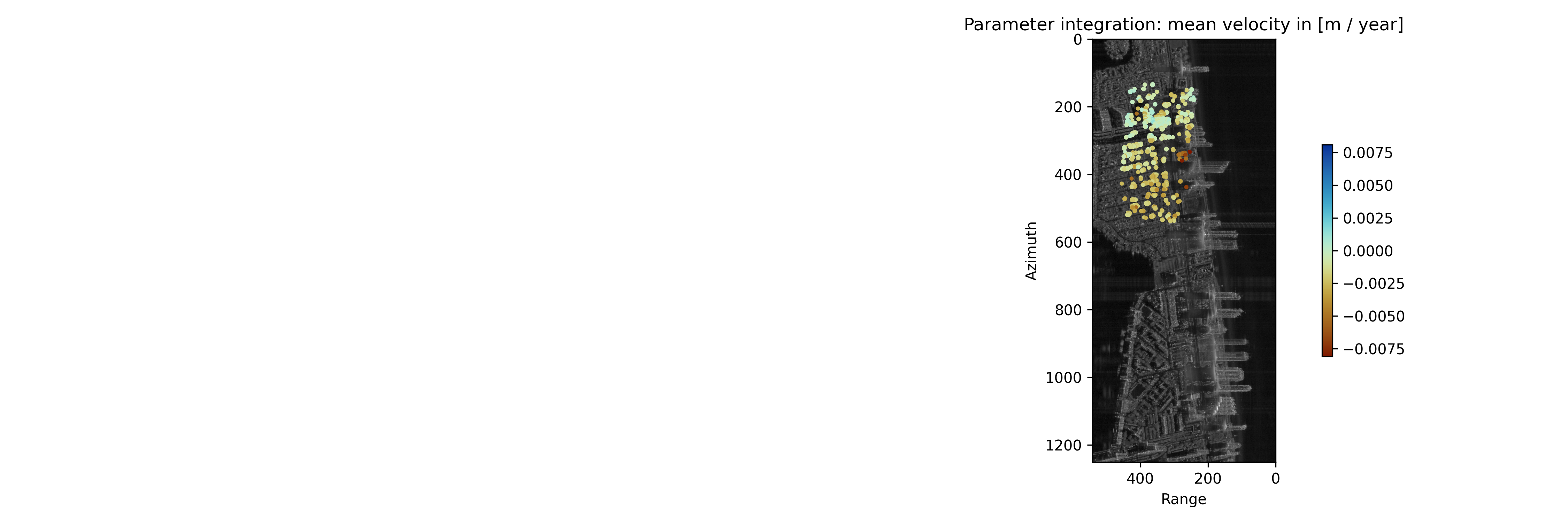

2025-06-18 17:23:12,929 - INFO - Integrate mean velocity.
2025-06-18 17:23:13,591 - DEBUG - time used: 00 mins 0.0 secs.
2025-06-18 17:23:13,873 - INFO - Remove phase contributions from mean velocity and DEM correction from wrapped phase of points.
2025-06-18 17:23:13,919 - INFO - ########## SPATIAL UNWRAPPING: puma ##########
2025-06-18 17:23:13,919 - INFO - start parallel processing with 10 cores.
2025-06-18 17:23:18,054 - DEBUG - time used: 00 mins 4.1 secs.
2025-06-18 17:23:18,056 - INFO - Add phase contributions from mean velocity and DEM correction back to spatially unwrapped residual phase.
2025-06-18 17:23:18,122 - INFO - write data to /Users/emirhan/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/sunnyisles_north/outputs/p1_ifg_unw.h5...
2025-06-18 17:23:18,123 - INFO - ########## INVERT IFG NETWORK ##########
2025-06-18 17:23:24,396 - DEBUG - time used: 00 mins 6.3 secs.
2025-06-18 17:23:24,396 - INFO - read from /Users/emirhan/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/sunnyisles_north/outputs/p1_ifg_unw.h5
2025-06-18 17:23:24,435 - INFO - write data to /Users/emirhan/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/sunnyisles_north/outputs/p1_ts.h5...
2025-06-18 17:23:24,439 - INFO - SARvey MTI finished normally.
