nsunnyisles
outputs/pic
config.json
{
general: {
input_path: "inputs/",
output_path: "outputs/",
num_cores: 10,
num_patches: 1,
apply_temporal_unwrapping: true,
spatial_unwrapping_method: "puma",
logging_level: "INFO",
logfile_path: "outputs/",
},
phase_linking: {
use_phase_linking_results: false,
inverted_path: "inverted/",
num_siblings: 20,
mask_phase_linking_file: "",
use_ps: false,
mask_ps_file: "maskPS.h5",
},
preparation: {
start_date: null,
end_date: "2023-10-31",

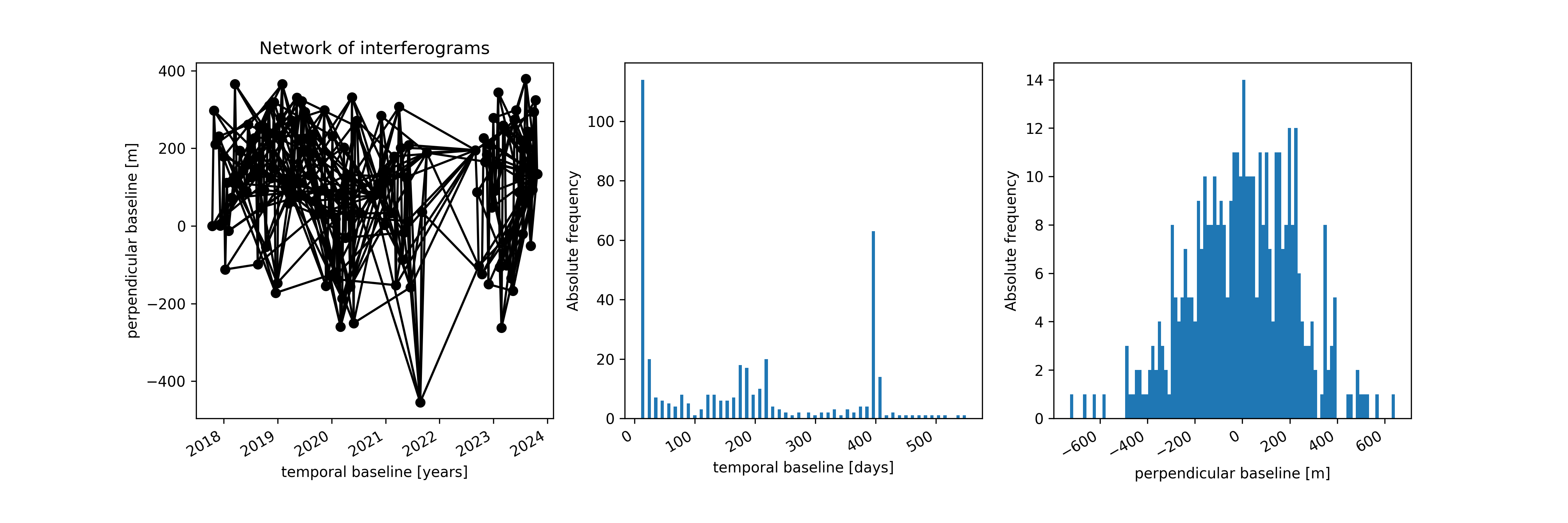

ifg_network_type: "sb",
num_ifgs: 3,
max_tbase: 400,
filter_window_size: 9,
},
consistency_check: {
coherence_p1: 0.7,
grid_size: 0,
mask_p1_file: "",
mask_p1_file: "",
mask_p1_file: "maskfiles/narrow2_maskPoly.h5",
num_nearest_neighbours: 50,
max_arc_length: null,
velocity_bound: 0.1,
dem_error_bound: 250.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
min_num_arc: 3,
},
unwrapping: {
use_arcs_from_temporal_unwrapping: true,
},
filtering: {
coherence_p2: 0.8,
apply_aps_filtering: true,
interpolation_method: "kriging",
grid_size: 1000,
mask_p2_file: "",
use_moving_points: true,
max_temporal_autocorrelation: 0.3,
},
densification: {
num_connections_to_p1: 5,
max_distance_to_p1: 2000,
velocity_bound: 0.15,
dem_error_bound: 100.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
},
}
../../subset_sarvey.log
2025-06-20 12:02:01 subset_sarvey.bash miaplpy_MDCBeach_201710_202310 --lat 25.937 25.958 --lon -80.124 -80.118 --outdir nsunnyisles
2025-06-20 12:03:08 subset_sarvey.bash miaplpy_MDCBeach_201710_202310 --lat 25.937 25.958 --lon -80.124 -80.118 --outdir nsunnyisles
sarvey_2025-07-08-16-42-52.log
2025-07-08 16:42:52,545 - INFO - SARvey version: 1.2.0 - Strawberry Pie, 2025-02-19_01, Run: MTInSAR
2025-07-08 16:42:52,546 - INFO - Parameter value default
2025-07-08 16:42:52,546 - INFO - _________ _____ _______
2025-07-08 16:42:52,546 - INFO - input_path inputs/ inputs/
2025-07-08 16:42:52,546 - INFO - output_path /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs <--- outputs/
2025-07-08 16:42:52,546 - INFO - num_cores 10 <--- 50
2025-07-08 16:42:52,546 - INFO - num_patches 1 1
2025-07-08 16:42:52,546 - INFO - apply_temporal_unwrapping True True
2025-07-08 16:42:52,546 - INFO - spatial_unwrapping_method puma puma
2025-07-08 16:42:52,546 - INFO - logging_level INFO INFO
2025-07-08 16:42:52,546 - INFO - logfile_path outputs/ <--- logfiles/
2025-07-08 16:42:52,546 - INFO -
2025-07-08 16:42:52,546 - INFO - ---------------------------------------------------------------------------------
2025-07-08 16:42:52,546 - INFO - STEP 1: CONSISTENCY CHECK
2025-07-08 16:42:52,546 - INFO - ---------------------------------------------------------------------------------
2025-07-08 16:42:52,546 - INFO - Parameter value default
2025-07-08 16:42:52,547 - INFO - _________ _____ _______

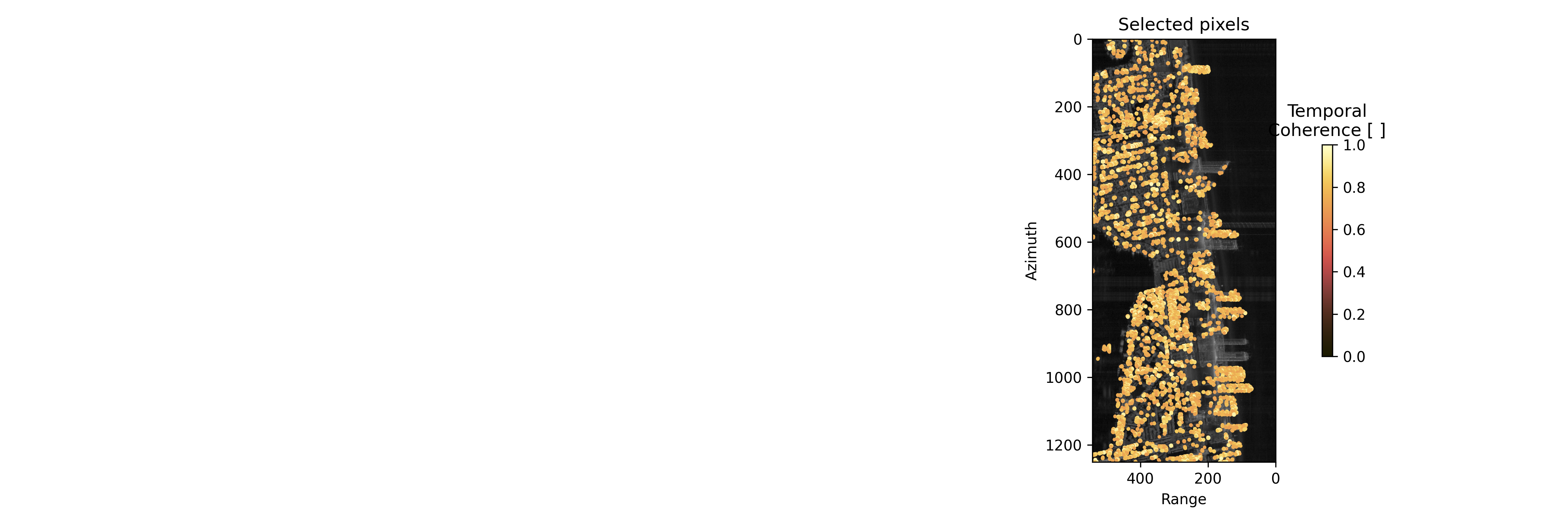

2025-07-08 16:42:52,547 - INFO - coherence_p1 0.7 <--- 0.9
2025-07-08 16:42:52,547 - INFO - grid_size None <--- 200
2025-07-08 16:42:52,547 - INFO - mask_p1_file /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/maskfiles/narrow2_maskPoly.h5 <---
2025-07-08 16:42:52,547 - INFO - num_nearest_neighbours 50 <--- 30
2025-07-08 16:42:52,547 - INFO - max_arc_length 999999 <--- None
2025-07-08 16:42:52,547 - INFO - velocity_bound 0.1 0.1
2025-07-08 16:42:52,547 - INFO - dem_error_bound 250.0 <--- 100.0
2025-07-08 16:42:52,547 - INFO - num_optimization_samples 100 100
2025-07-08 16:42:52,547 - INFO - arc_unwrapping_coherence 0.5 <--- 0.6
2025-07-08 16:42:52,547 - INFO - min_num_arc 3 3
2025-07-08 16:42:52,547 - INFO -

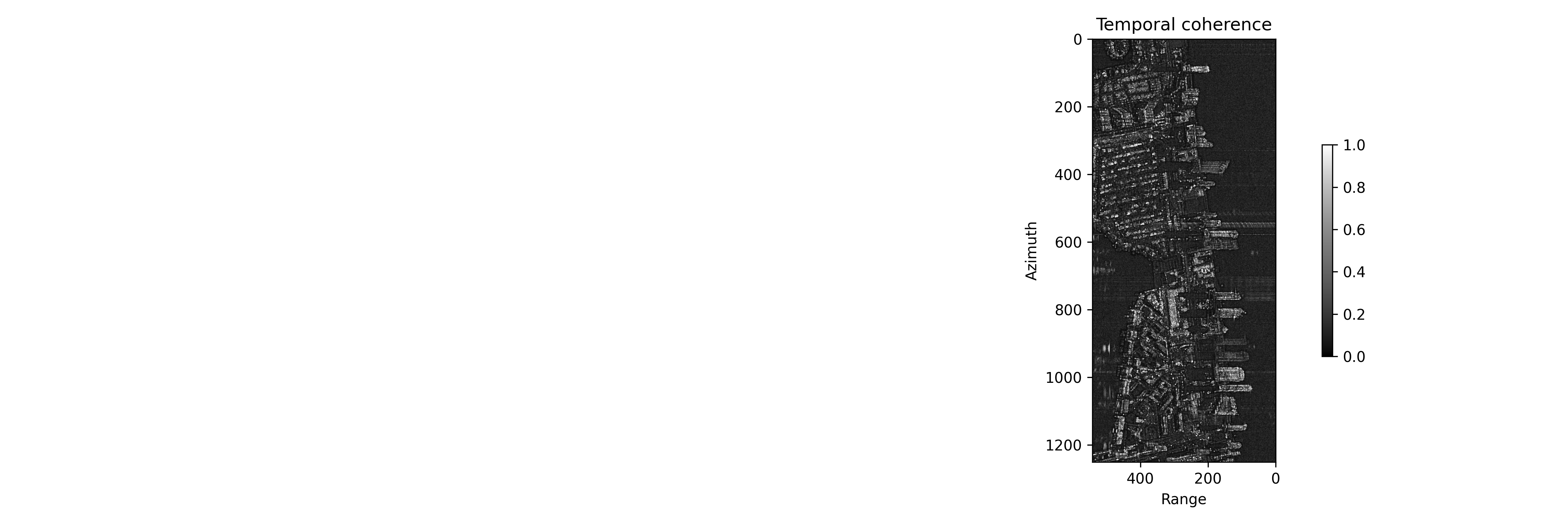

2025-07-08 16:42:52,548 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/temporal_coherence.h5 ...
2025-07-08 16:42:53,068 - INFO - load mask for area of interest from: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/maskfiles/narrow2_maskPoly.h5.
2025-07-08 16:42:53,399 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/ifg_stack.h5 ...
2025-07-08 16:42:53,915 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/p1_ifg_wr.h5...
2025-07-08 16:42:53,918 - INFO - create distance matrix between all points...
2025-07-08 16:42:54,618 - INFO - Triangulate points with 50-nearest neighbours.
2025-07-08 16:42:54,887 - DEBUG - time used: 00 mins 0.3 secs.
2025-07-08 16:42:54,887 - INFO - Triangulate points with global delaunay.
2025-07-08 16:42:54,963 - INFO - remove arcs with length > 999999.
2025-07-08 16:42:55,082 - INFO - retrieve arcs from adjacency matrix.
2025-07-08 16:42:55,249 - INFO - no. arcs: 231612
2025-07-08 16:42:59,901 - INFO - ifg arc observations created.
2025-07-08 16:42:59,901 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/point_network.h5...
2025-07-08 16:43:00,063 - INFO - ########## TEMPORAL UNWRAPPING: AMBIGUITY FUNCTION ##########
2025-07-08 16:43:00,063 - INFO - start parallel processing with 10 cores.
2025-07-08 16:44:47,882 - INFO - Finished temporal unwrapping.
2025-07-08 16:44:47,882 - DEBUG - time used: 01 mins 47.8 secs.
2025-07-08 16:44:47,894 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/point_network_parameter.h5...

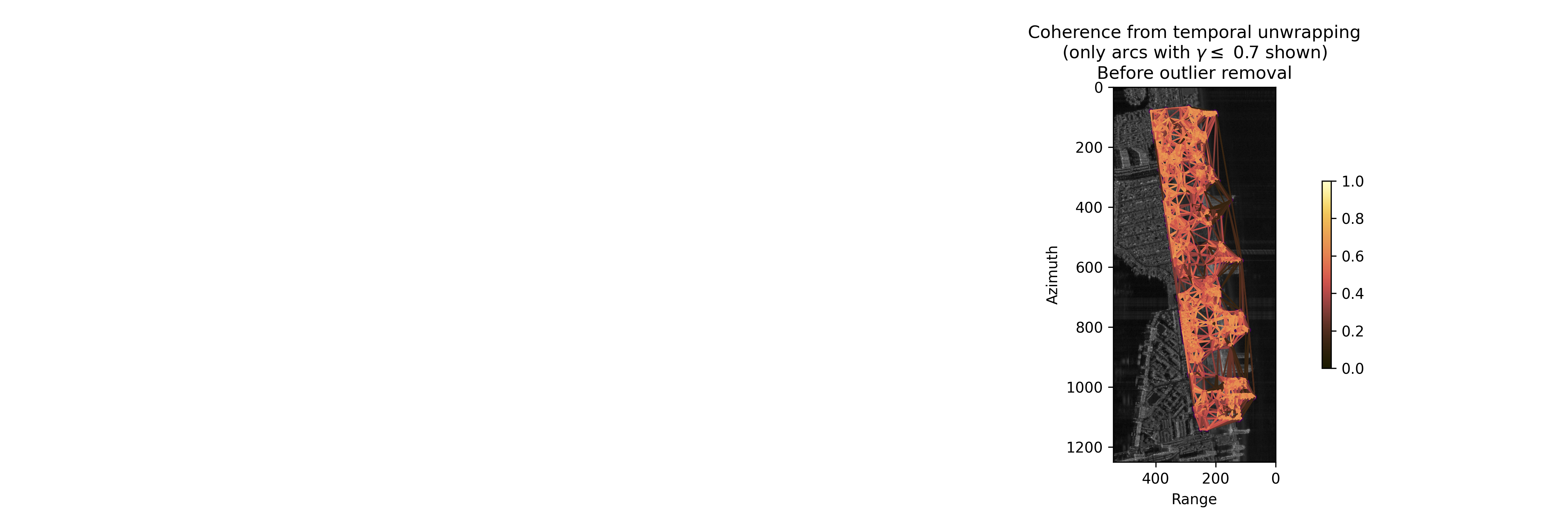

2025-07-08 16:45:13,042 - INFO - Detect points with low quality arcs (mean): < 0.5
2025-07-08 16:45:13,042 - INFO - Removal of points whose arcs are incoherent in average.
2025-07-08 16:45:25,855 - INFO - Detected 552 point(s) with mean coherence of all connected arcs < 0.5
2025-07-08 16:45:25,856 - INFO - Removal of low quality arcs: < 0.5
2025-07-08 16:45:25,857 - INFO - Removed 30363 arc(s)
2025-07-08 16:45:25,996 - INFO - Removal of arcs and PSC that cannot be tested.
2025-07-08 16:45:50,862 - INFO - Detected 19 point(s) with less than 3 arcs
2025-07-08 16:45:50,862 - INFO - Remove 552 point(s)
2025-07-08 16:46:03,427 - INFO - Removed 8862 arc(s) connected to the removed point(s)
2025-07-08 16:46:21,041 - INFO - ########## NOISY POINT REMOVAL BASED ON ARC PARAMETERS ##########
2025-07-08 16:46:21,041 - INFO - Selection of the reference PSC
2025-07-08 16:46:27,399 - INFO - Spatial integration to detect noisy point
2025-07-08 16:46:27,399 - INFO - ITERATION: 0

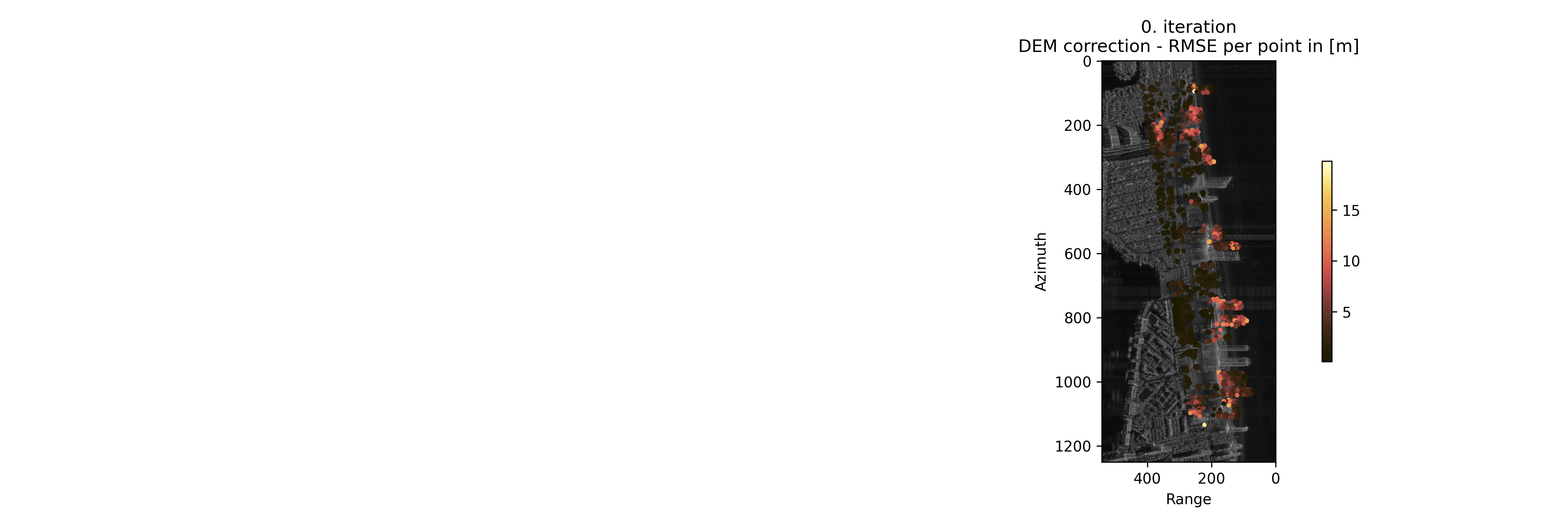

2025-07-08 16:49:46,420 - INFO - Maximum RMSE DEM correction: 19.80 m
2025-07-08 16:49:46,421 - INFO - Maximum RMSE velocity: 0.0023 m / year
2025-07-08 16:49:47,131 - INFO - No noisy pixels detected.
2025-07-08 16:49:47,131 - DEBUG - time used: 03 mins 19.7 secs.
2025-07-08 16:49:47,132 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/point_network_parameter.h5...
2025-07-08 16:49:47,366 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/p1_ifg_wr.h5...
2025-07-08 16:49:47,431 - INFO - ---------------------------------------------------------------------------------
2025-07-08 16:49:47,431 - INFO - STEP 2: UNWRAPPING
2025-07-08 16:49:47,431 - INFO - ---------------------------------------------------------------------------------
2025-07-08 16:49:47,431 - INFO - Parameter value default
2025-07-08 16:49:47,431 - INFO - _________ _____ _______
2025-07-08 16:49:47,431 - INFO - use_arcs_from_temporal_unwrapping True True
2025-07-08 16:49:47,431 - INFO -
2025-07-08 16:49:47,502 - INFO - read from /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/p1_ifg_wr.h5
2025-07-08 16:49:47,534 - INFO - Integrate parameters from arcs to points.

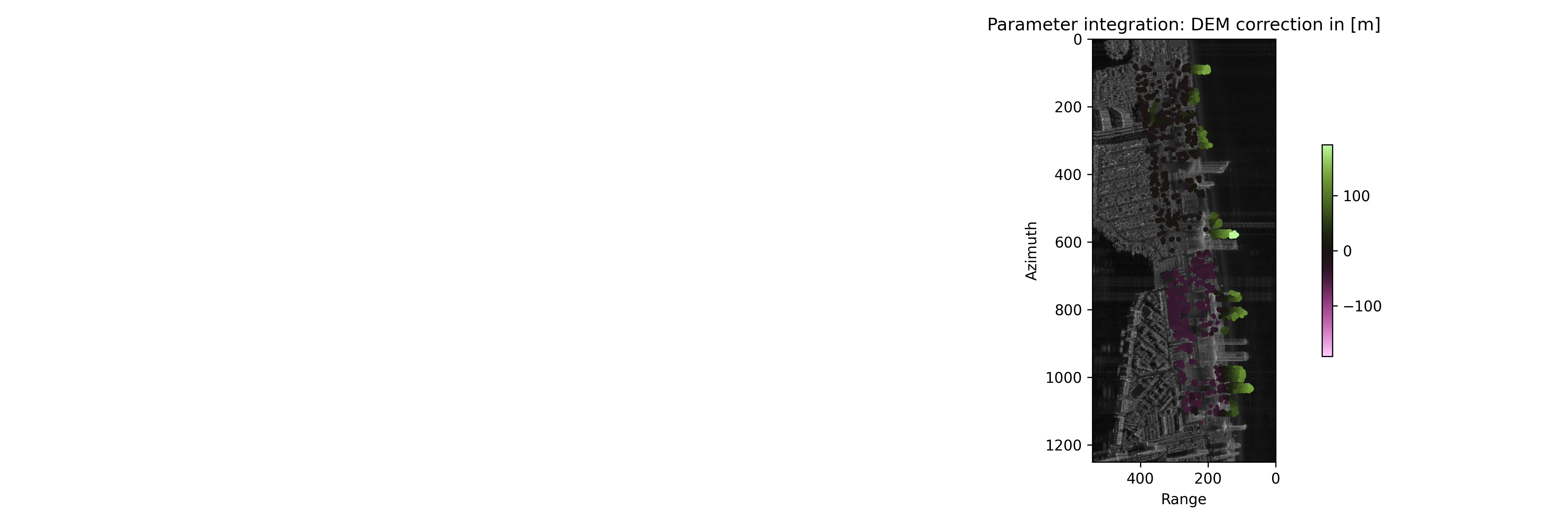

2025-07-08 16:49:47,534 - INFO - Integrate DEM correction.
2025-07-08 16:49:58,003 - DEBUG - time used: 00 mins 0.5 secs.

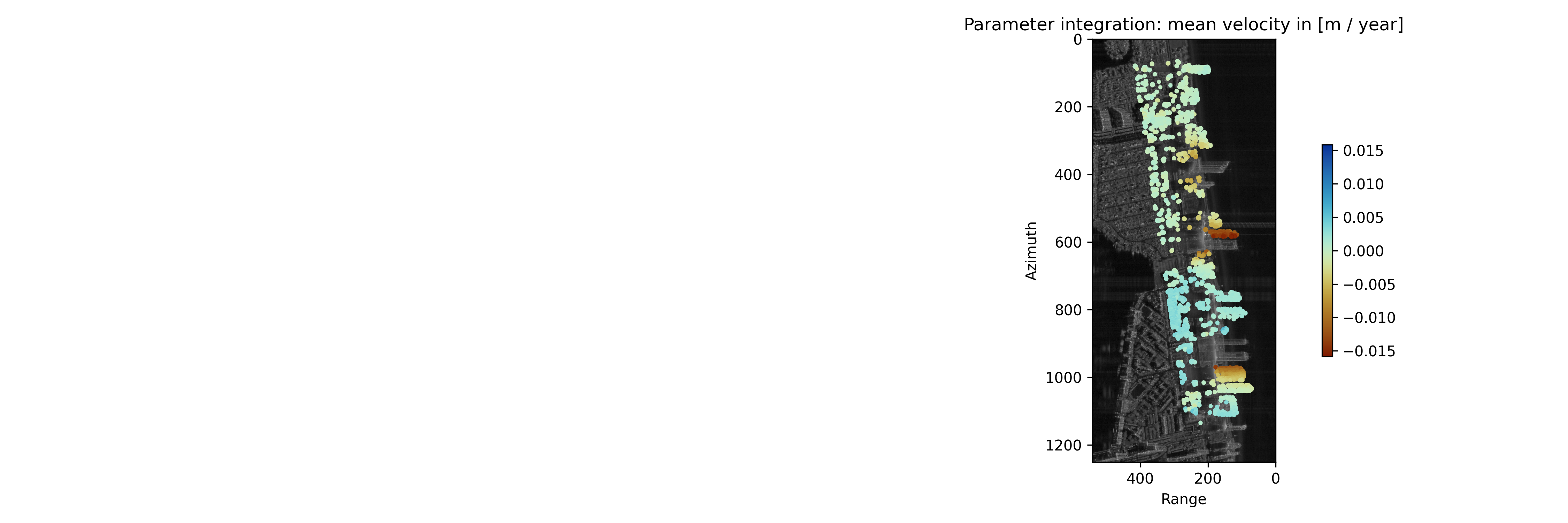

2025-07-08 16:49:58,248 - INFO - Integrate mean velocity.
2025-07-08 16:50:08,946 - DEBUG - time used: 00 mins 0.5 secs.
2025-07-08 16:50:09,193 - INFO - Remove phase contributions from mean velocity and DEM correction from wrapped phase of points.
2025-07-08 16:50:09,348 - INFO - ########## SPATIAL UNWRAPPING: puma ##########
2025-07-08 16:50:09,348 - INFO - start parallel processing with 10 cores.
2025-07-08 16:50:20,079 - DEBUG - time used: 00 mins 10.7 secs.
2025-07-08 16:50:20,082 - INFO - Add phase contributions from mean velocity and DEM correction back to spatially unwrapped residual phase.
2025-07-08 16:50:20,289 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/p1_ifg_unw.h5...
2025-07-08 16:50:20,294 - INFO - ########## INVERT IFG NETWORK ##########
2025-07-08 16:50:43,240 - DEBUG - time used: 00 mins 22.9 secs.
2025-07-08 16:50:43,241 - INFO - read from /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/p1_ifg_unw.h5
2025-07-08 16:50:43,300 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/nsunnyisles/outputs/p1_ts.h5...
2025-07-08 16:50:43,316 - INFO - SARvey MTI finished normally.
