downtown
outputs_downtownvsmall2/pic
config.json
{
general: {
input_path: "inputs/",
output_path: "outputs_downtownvsmall2/",
num_cores: 10,
num_patches: 1,
apply_temporal_unwrapping: true,
spatial_unwrapping_method: "puma",
logging_level: "INFO",
logfile_path: "outputs_downtownvsmall2/",
},
phase_linking: {
use_phase_linking_results: false,
inverted_path: "inverted/",
num_siblings: 20,
mask_phase_linking_file: "",
use_ps: false,
mask_ps_file: "maskPS.h5",
},
preparation: {
start_date: null,
end_date: "2021-10-31",

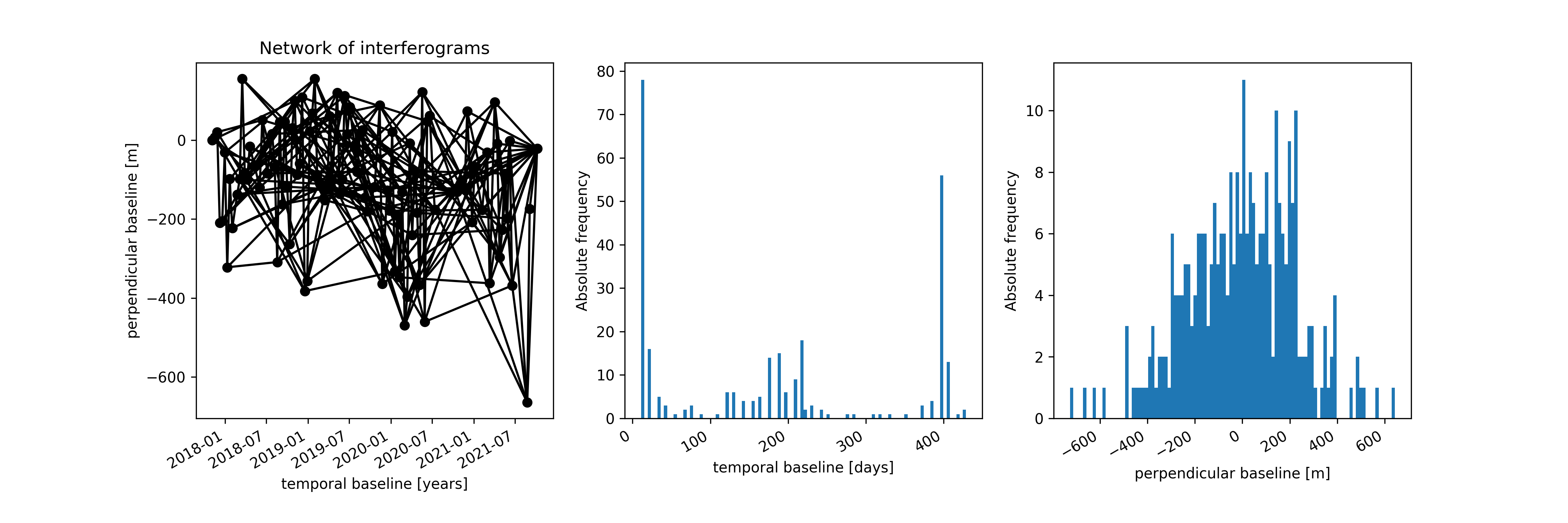

ifg_network_type: "sb",
num_ifgs: 3,
max_tbase: 400,
filter_window_size: 9,
},
consistency_check: {
coherence_p1: 0.7,
grid_size: 0,
mask_p1_file: "",
mask_p1_file: "maskfiles/downtownbKeyBig_maskPoly.h5",
mask_p1_file: "maskfiles/downtownSmall_maskPoly.h5",
mask_p1_file: "maskfiles/downtonvsmall_maskPoly.h5",
mask_p1_file: "maskfiles/downtonvsmall2_maskPoly.h5",
num_nearest_neighbours: 80,
max_arc_length: null,
velocity_bound: 0.1,
dem_error_bound: 250.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
min_num_arc: 3,
},
unwrapping: {
use_arcs_from_temporal_unwrapping: true,
},
filtering: {
coherence_p2: 0.8,
apply_aps_filtering: true,
interpolation_method: "kriging",
grid_size: 1000,
mask_p2_file: "",
use_moving_points: true,
max_temporal_autocorrelation: 0.3,
},
densification: {
num_connections_to_p1: 5,
max_distance_to_p1: 2000,
velocity_bound: 0.15,
dem_error_bound: 100.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
},
}
../../subset_sarvey.log
2025-06-18 07:18:19 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 07:20:20 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 07:53:19 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 08:07:32 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 08:08:30 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 08:09:32 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 08:19:10 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 08:19:36 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
2025-06-18 08:20:04 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.750 25.780 --lon -80.196 -80.182 --outdir downtown
sarvey_2025-06-24-13-49-04.log
2025-06-24 13:49:04,282 - INFO - SARvey version: 1.2.0 - Strawberry Pie, 2025-02-19_01, Run: MTInSAR
2025-06-24 13:49:04,284 - INFO - Parameter value default
2025-06-24 13:49:04,284 - INFO - _________ _____ _______
2025-06-24 13:49:04,284 - INFO - input_path inputs/ inputs/
2025-06-24 13:49:04,284 - INFO - output_path /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2 <--- outputs/
2025-06-24 13:49:04,284 - INFO - num_cores 10 <--- 50
2025-06-24 13:49:04,284 - INFO - num_patches 1 1
2025-06-24 13:49:04,284 - INFO - apply_temporal_unwrapping True True
2025-06-24 13:49:04,284 - INFO - spatial_unwrapping_method puma puma
2025-06-24 13:49:04,284 - INFO - logging_level INFO INFO
2025-06-24 13:49:04,284 - INFO - logfile_path outputs_downtownvsmall2/ <--- logfiles/
2025-06-24 13:49:04,284 - INFO -
2025-06-24 13:49:04,284 - INFO - ---------------------------------------------------------------------------------
2025-06-24 13:49:04,284 - INFO - STEP 1: CONSISTENCY CHECK
2025-06-24 13:49:04,284 - INFO - ---------------------------------------------------------------------------------
2025-06-24 13:49:04,284 - INFO - Parameter value default
2025-06-24 13:49:04,284 - INFO - _________ _____ _______

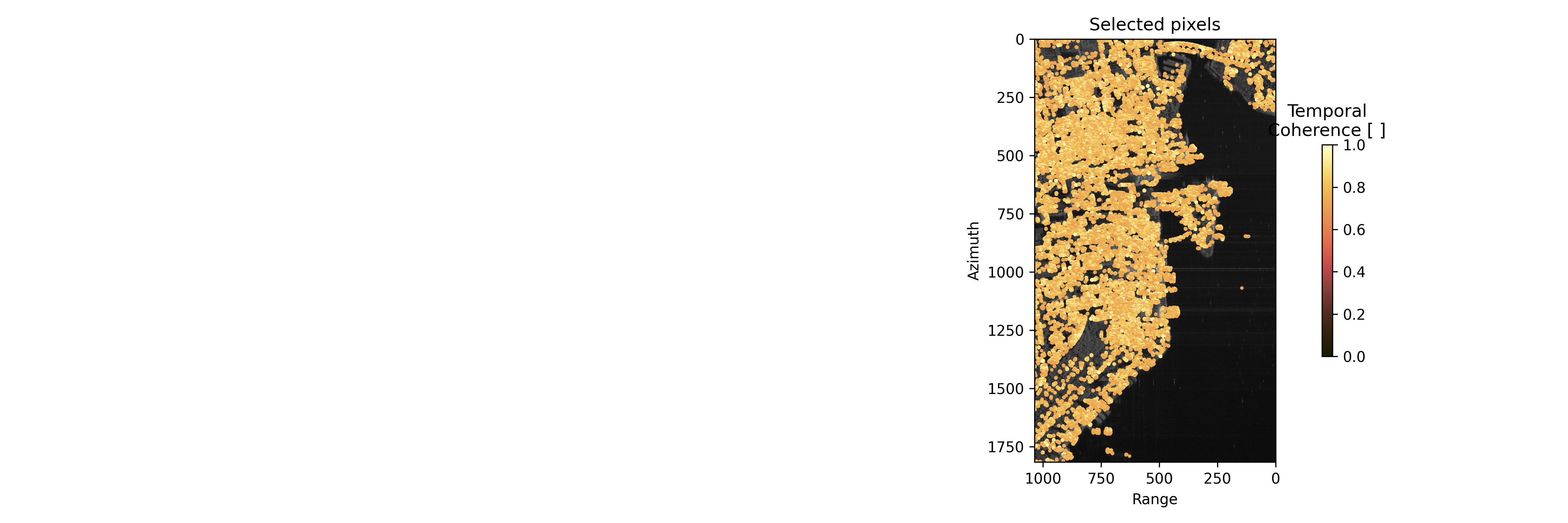

2025-06-24 13:49:04,284 - INFO - coherence_p1 0.7 <--- 0.9
2025-06-24 13:49:04,284 - INFO - grid_size None <--- 200
2025-06-24 13:49:04,284 - INFO - mask_p1_file /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/maskfiles/downtonvsmall2_maskPoly.h5 <---
2025-06-24 13:49:04,284 - INFO - num_nearest_neighbours 80 <--- 30
2025-06-24 13:49:04,285 - INFO - max_arc_length 999999 <--- None
2025-06-24 13:49:04,285 - INFO - velocity_bound 0.1 0.1
2025-06-24 13:49:04,285 - INFO - dem_error_bound 250.0 <--- 100.0
2025-06-24 13:49:04,285 - INFO - num_optimization_samples 100 100
2025-06-24 13:49:04,285 - INFO - arc_unwrapping_coherence 0.5 <--- 0.6
2025-06-24 13:49:04,285 - INFO - min_num_arc 3 3
2025-06-24 13:49:04,285 - INFO -

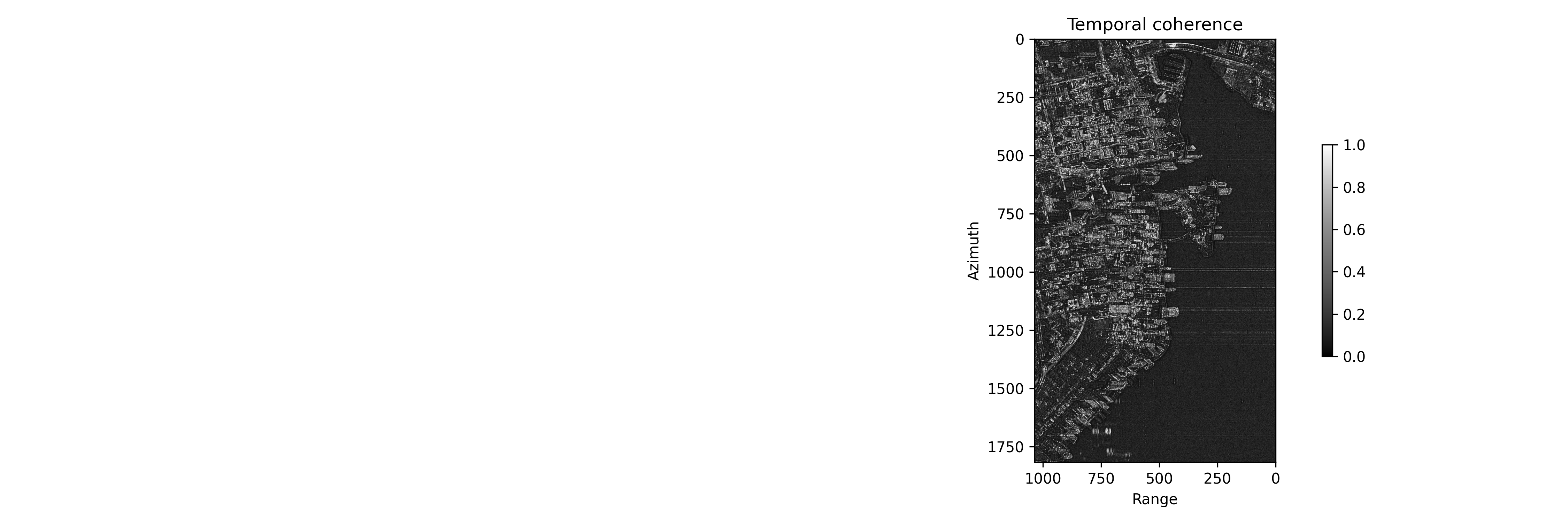

2025-06-24 13:49:04,287 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/temporal_coherence.h5 ...

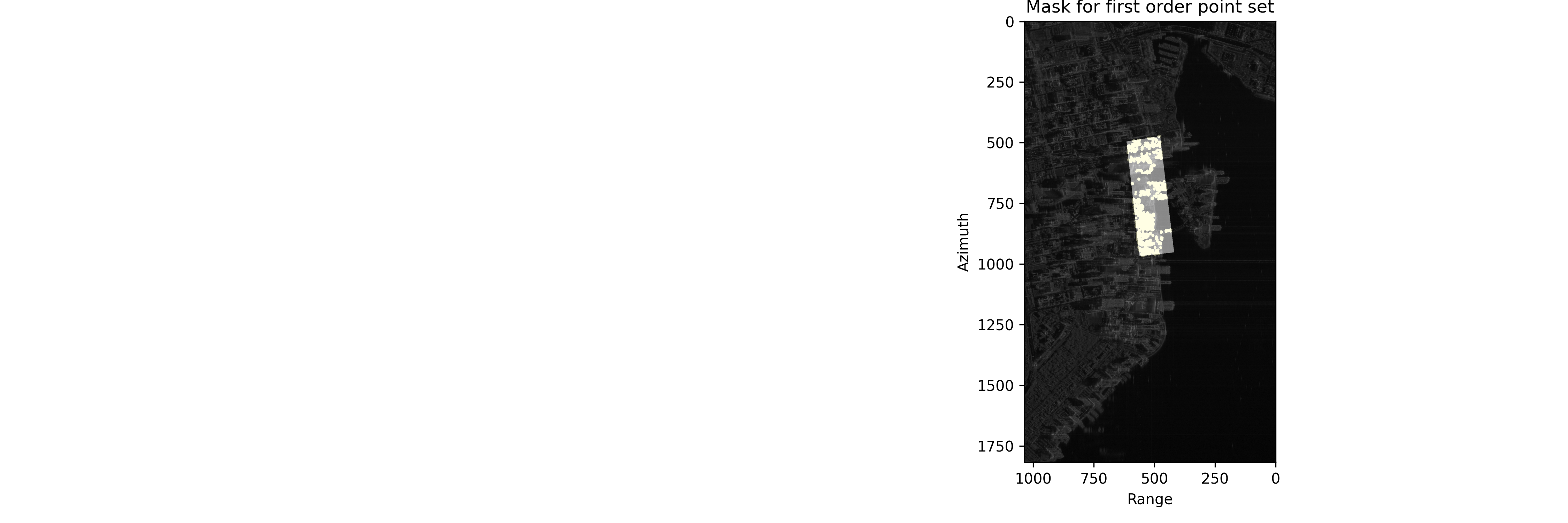

2025-06-24 13:49:05,266 - INFO - load mask for area of interest from: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/maskfiles/downtonvsmall2_maskPoly.h5.
2025-06-24 13:49:05,752 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/ifg_stack.h5 ...
2025-06-24 13:49:06,512 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/p1_ifg_wr.h5...
2025-06-24 13:49:06,514 - INFO - create distance matrix between all points...
2025-06-24 13:49:06,738 - INFO - Triangulate points with 80-nearest neighbours.
2025-06-24 13:49:06,903 - DEBUG - time used: 00 mins 0.2 secs.
2025-06-24 13:49:06,903 - INFO - Triangulate points with global delaunay.
2025-06-24 13:49:06,946 - INFO - remove arcs with length > 999999.
2025-06-24 13:49:06,986 - INFO - retrieve arcs from adjacency matrix.
2025-06-24 13:49:07,115 - INFO - no. arcs: 196305
2025-06-24 13:49:10,669 - INFO - ifg arc observations created.
2025-06-24 13:49:10,669 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/point_network.h5...

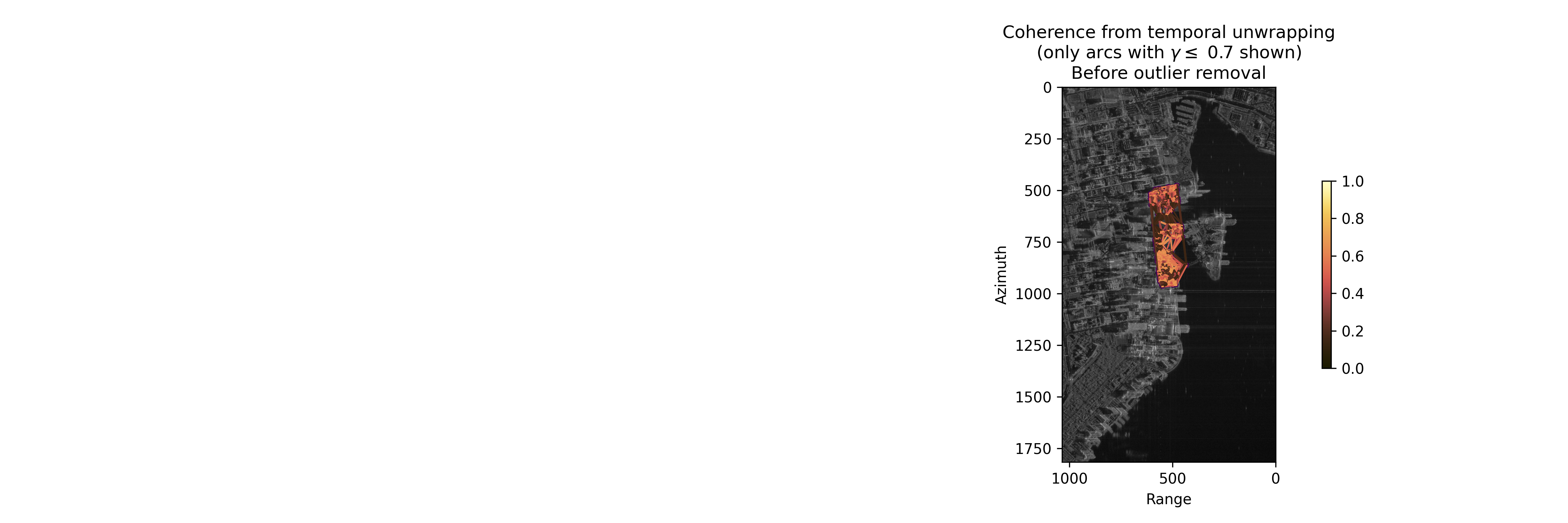

2025-06-24 13:49:10,776 - INFO - ########## TEMPORAL UNWRAPPING: AMBIGUITY FUNCTION ##########
2025-06-24 13:49:10,776 - INFO - start parallel processing with 10 cores.
2025-06-24 13:50:27,702 - INFO - Finished temporal unwrapping.
2025-06-24 13:50:27,702 - DEBUG - time used: 01 mins 16.9 secs.
2025-06-24 13:50:27,710 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/point_network_parameter.h5...
2025-06-24 13:50:48,710 - INFO - Detect points with low quality arcs (mean): < 0.5
2025-06-24 13:50:48,710 - INFO - Removal of points whose arcs are incoherent in average.
2025-06-24 13:50:53,572 - INFO - Detected 659 point(s) with mean coherence of all connected arcs < 0.5
2025-06-24 13:50:53,573 - INFO - Removal of low quality arcs: < 0.5
2025-06-24 13:50:53,574 - INFO - Removed 45737 arc(s)
2025-06-24 13:50:53,650 - INFO - Removal of arcs and PSC that cannot be tested.
2025-06-24 13:51:00,726 - INFO - Detected 10 point(s) with less than 3 arcs
2025-06-24 13:51:00,726 - INFO - Remove 659 point(s)
2025-06-24 13:51:04,554 - INFO - Removed 19505 arc(s) connected to the removed point(s)
2025-06-24 13:51:13,231 - INFO - ########## NOISY POINT REMOVAL BASED ON ARC PARAMETERS ##########
2025-06-24 13:51:13,231 - INFO - Selection of the reference PSC
2025-06-24 13:51:14,062 - INFO - Spatial integration to detect noisy point
2025-06-24 13:51:14,062 - INFO - ITERATION: 0
2025-06-24 13:52:02,348 - INFO - Maximum RMSE DEM correction: 21.39 m

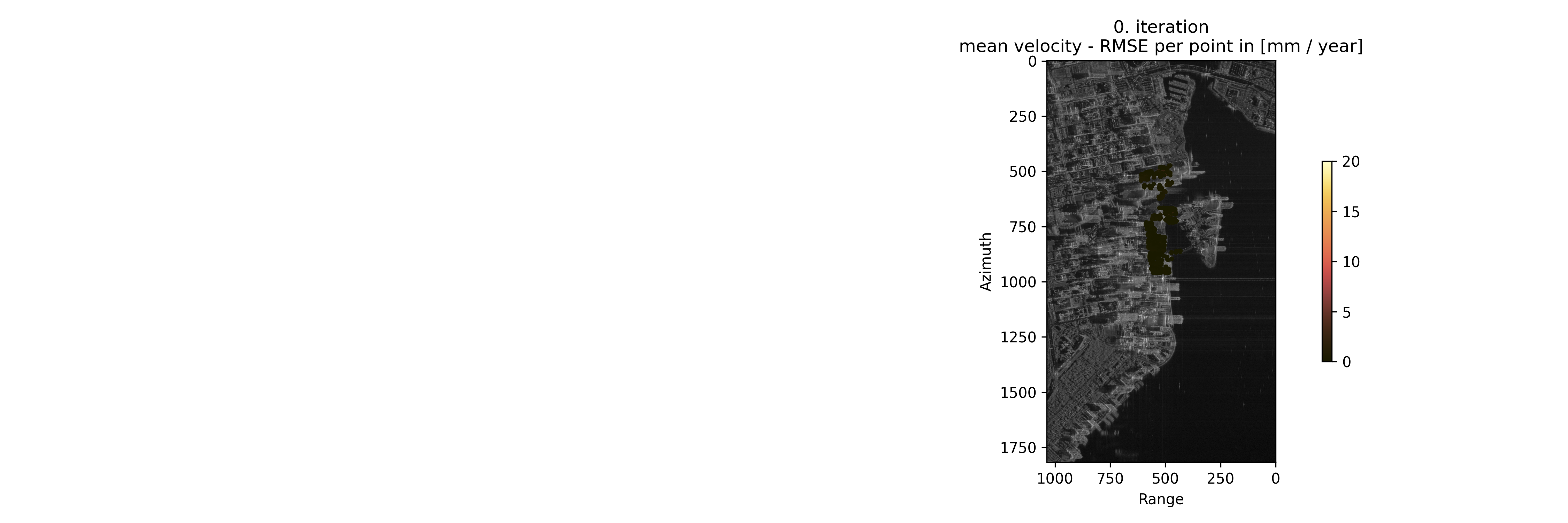

2025-06-24 13:52:02,348 - INFO - Maximum RMSE velocity: 0.0052 m / year
2025-06-24 13:52:03,082 - INFO - No noisy pixels detected.
2025-06-24 13:52:03,083 - DEBUG - time used: 00 mins 49.0 secs.
2025-06-24 13:52:03,083 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/point_network_parameter.h5...
2025-06-24 13:52:03,287 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/p1_ifg_wr.h5...
2025-06-24 13:52:03,288 - INFO - ---------------------------------------------------------------------------------
2025-06-24 13:52:03,288 - INFO - STEP 2: UNWRAPPING
2025-06-24 13:52:03,288 - INFO - ---------------------------------------------------------------------------------
2025-06-24 13:52:03,288 - INFO - Parameter value default
2025-06-24 13:52:03,288 - INFO - _________ _____ _______
2025-06-24 13:52:03,289 - INFO - use_arcs_from_temporal_unwrapping True True
2025-06-24 13:52:03,289 - INFO -
2025-06-24 13:52:03,331 - INFO - read from /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/p1_ifg_wr.h5
2025-06-24 13:52:03,376 - INFO - Integrate parameters from arcs to points.

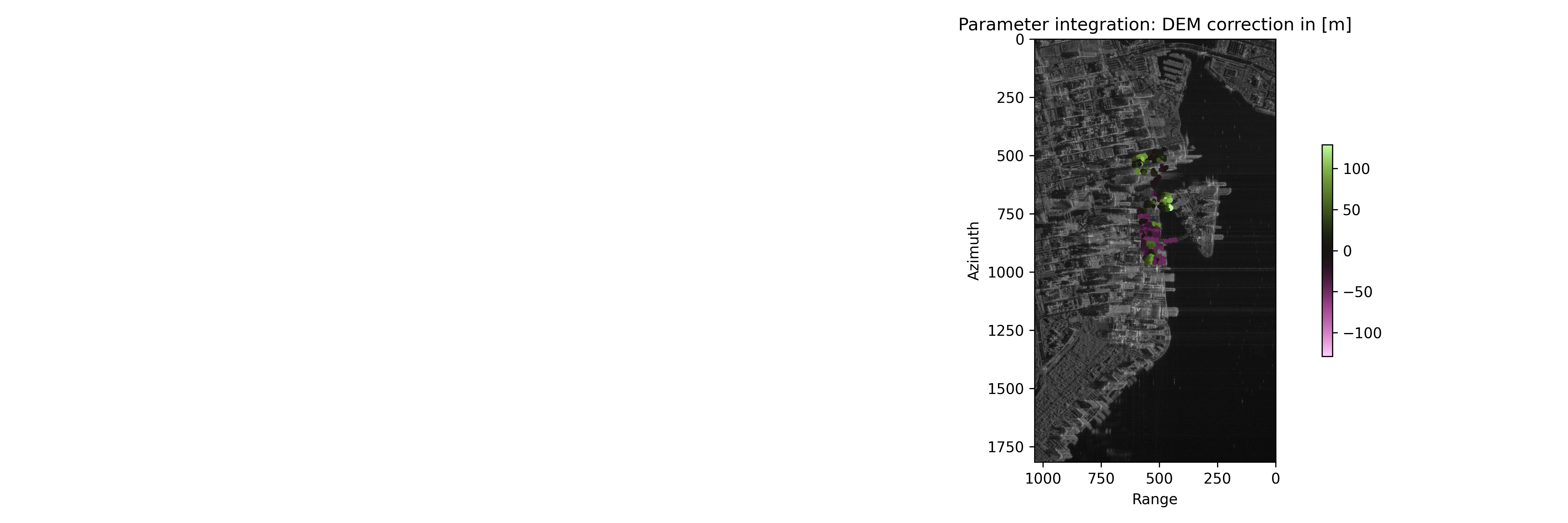

2025-06-24 13:52:03,376 - INFO - Integrate DEM correction.
2025-06-24 13:52:06,955 - DEBUG - time used: 00 mins 0.2 secs.

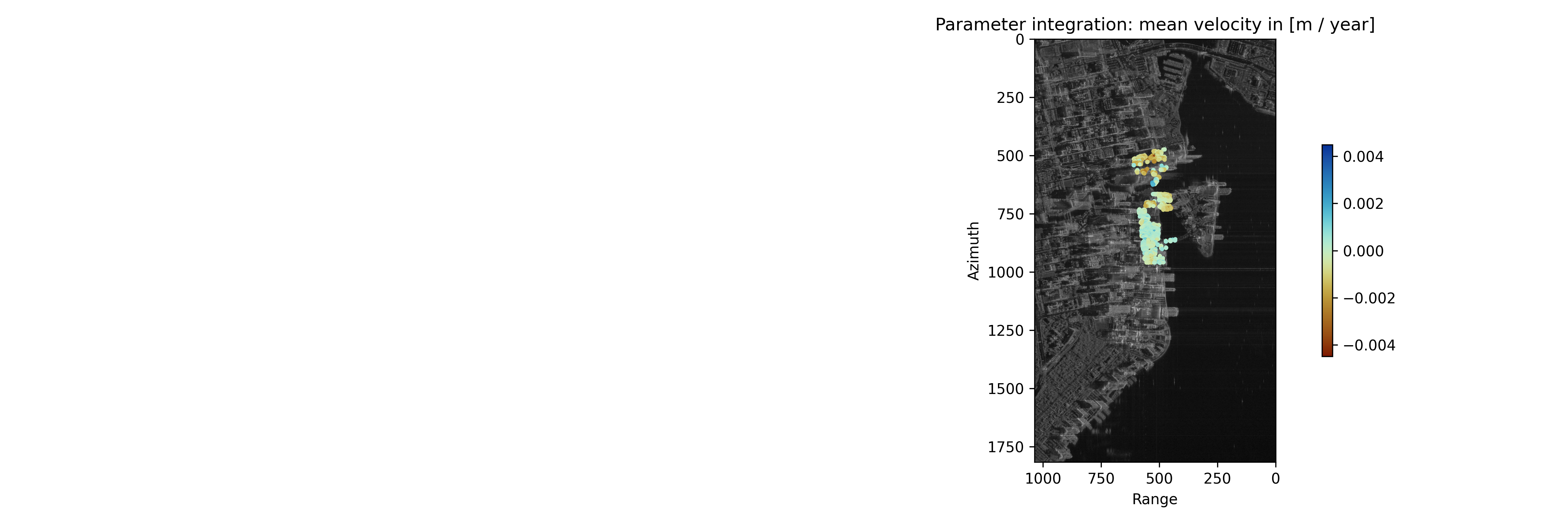

2025-06-24 13:52:07,257 - INFO - Integrate mean velocity.
2025-06-24 13:52:10,739 - DEBUG - time used: 00 mins 0.2 secs.
2025-06-24 13:52:11,038 - INFO - Remove phase contributions from mean velocity and DEM correction from wrapped phase of points.
2025-06-24 13:52:11,093 - INFO - ########## SPATIAL UNWRAPPING: puma ##########
2025-06-24 13:52:11,093 - INFO - start parallel processing with 10 cores.
2025-06-24 13:52:16,718 - DEBUG - time used: 00 mins 5.6 secs.
2025-06-24 13:52:16,719 - INFO - Add phase contributions from mean velocity and DEM correction back to spatially unwrapped residual phase.
2025-06-24 13:52:16,807 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/p1_ifg_unw.h5...
2025-06-24 13:52:16,809 - INFO - ########## INVERT IFG NETWORK ##########
2025-06-24 13:52:27,850 - DEBUG - time used: 00 mins 11.0 secs.
2025-06-24 13:52:27,850 - INFO - read from /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/p1_ifg_unw.h5
2025-06-24 13:52:27,898 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/MiamiTsxSMDT36/downtown/outputs_downtownvsmall2/p1_ts.h5...
2025-06-24 13:52:27,917 - INFO - SARvey MTI finished normally.
