Downtown_south2021
outputs_edowntownsouth2021/pic
config.json
{
general: {
input_path: "inputs/",
output_path: "outputs_edowntownsouth2021/",
num_cores: 36,
num_patches: 1,
apply_temporal_unwrapping: true,
spatial_unwrapping_method: "puma",
logging_level: "INFO",
logfile_path: "logfiles/",
},
phase_linking: {
use_phase_linking_results: false,
inverted_path: "inverted/",
num_siblings: 20,
mask_phase_linking_file: "",
use_ps: false,
mask_ps_file: "maskPS.h5",
},
preparation: {
start_date: null,
end_date: null,

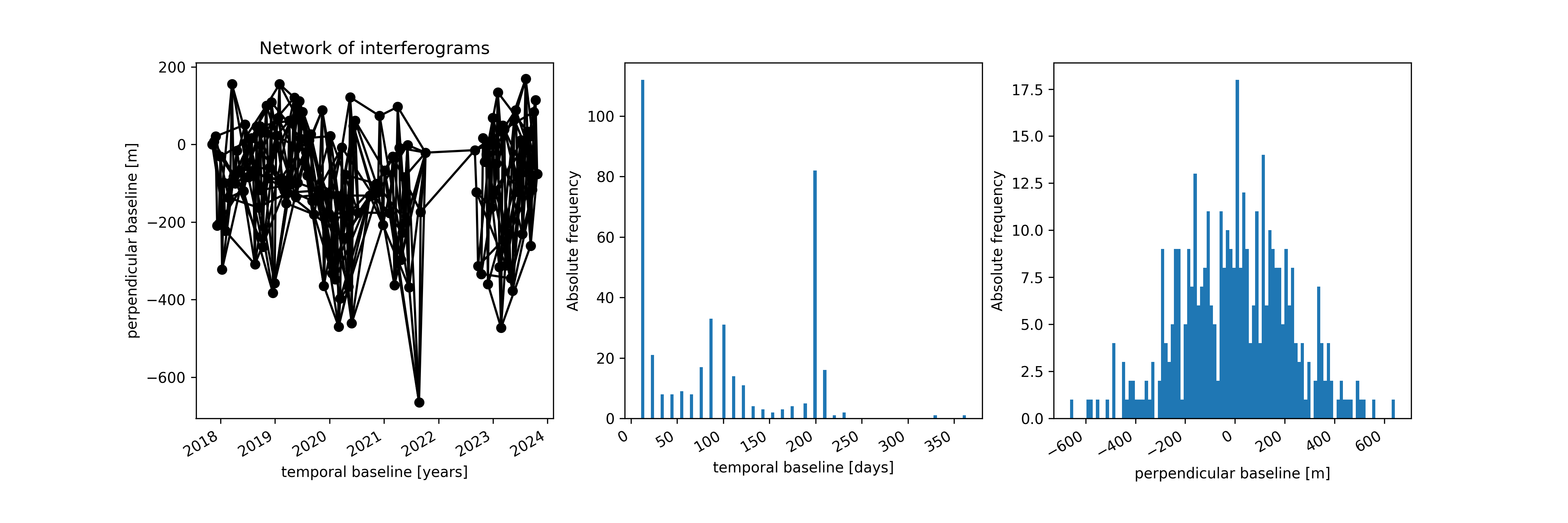

ifg_network_type: "sb",
num_ifgs: 3,
max_tbase: 300,
filter_window_size: 9,
},
consistency_check: {

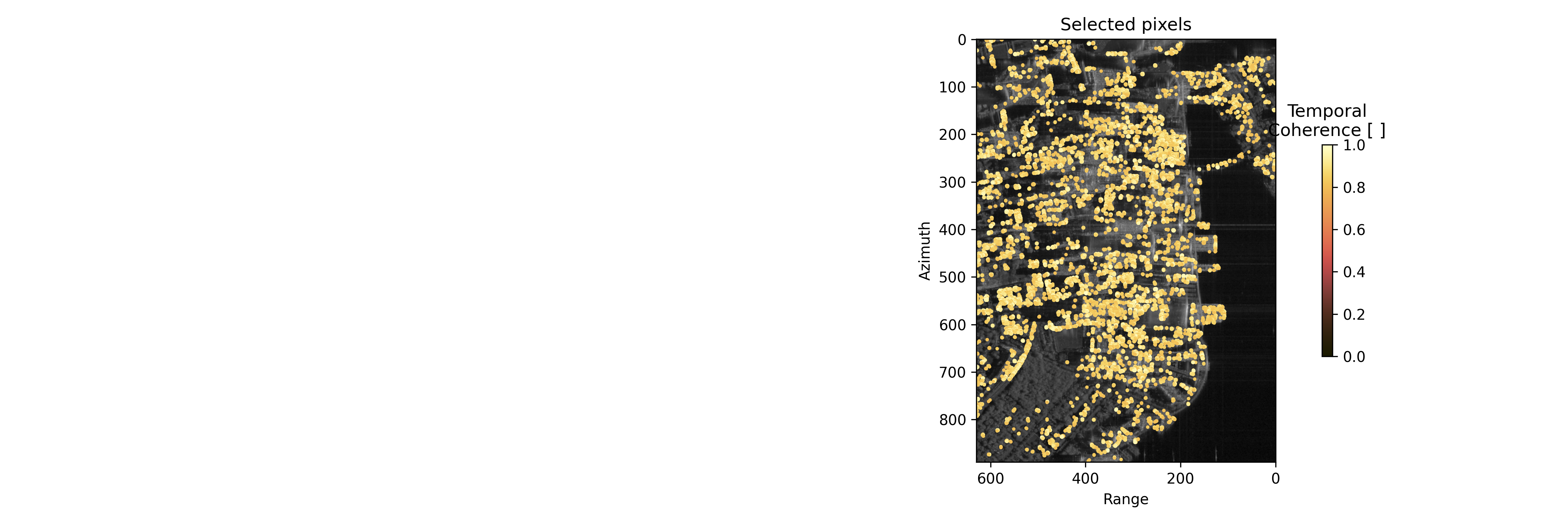

coherence_p1: 0.8,
grid_size: 0,
mask_p1_file: "inputs/maskPoly.h5",
num_nearest_neighbours: 50,
max_arc_length: null,
velocity_bound: 0.1,
dem_error_bound: 250.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.6,
min_num_arc: 3,
},
unwrapping: {
use_arcs_from_temporal_unwrapping: true,
},
filtering: {
coherence_p2: 0.8,
apply_aps_filtering: true,
interpolation_method: "kriging",
grid_size: 1000,
mask_p2_file: "",
use_moving_points: true,
max_temporal_autocorrelation: 0.3,
},
densification: {
num_connections_to_p1: 5,
max_distance_to_p1: 2000,
velocity_bound: 0.15,
dem_error_bound: 100.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
},
}
../../subset_sarvey.log
2025-06-20 16:02:13 subset_sarvey.bash miaplpy_Downtown_201711_202310 --lat 25.770 25.756 --lon -80.196 -80.187 --outdir Downtown_south2011
sarvey_2025-06-20-16-35-49.log
2025-06-20 16:35:49,564 - INFO - SARvey version: 1.2.0 - Strawberry Pie, 2025-02-19_01, Run: MTInSAR
2025-06-20 16:35:49,567 - INFO - Parameter value default
2025-06-20 16:35:49,567 - INFO - _________ _____ _______
2025-06-20 16:35:49,567 - INFO - input_path inputs/ inputs/
2025-06-20 16:35:49,567 - INFO - output_path /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/outputs_edowntownsouth2021 <--- outputs/
2025-06-20 16:35:49,567 - INFO - num_cores 36 <--- 50
2025-06-20 16:35:49,567 - INFO - num_patches 1 1
2025-06-20 16:35:49,567 - INFO - apply_temporal_unwrapping True True
2025-06-20 16:35:49,567 - INFO - spatial_unwrapping_method puma puma
2025-06-20 16:35:49,567 - INFO - logging_level INFO INFO
2025-06-20 16:35:49,567 - INFO - logfile_path logfiles/ logfiles/
2025-06-20 16:35:49,567 - INFO -
2025-06-20 16:35:49,569 - INFO - ---------------------------------------------------------------------------------
2025-06-20 16:35:49,569 - INFO - STEP 1: CONSISTENCY CHECK
2025-06-20 16:35:49,569 - INFO - ---------------------------------------------------------------------------------
2025-06-20 16:35:49,569 - INFO - Parameter value default
2025-06-20 16:35:49,569 - INFO - _________ _____ _______
2025-06-20 16:35:49,569 - INFO - coherence_p1 0.8 <--- 0.9
2025-06-20 16:35:49,569 - INFO - grid_size None <--- 200
2025-06-20 16:35:49,569 - INFO - mask_p1_file /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/inputs/maskPoly.h5 <---
2025-06-20 16:35:49,569 - INFO - num_nearest_neighbours 50 <--- 30
2025-06-20 16:35:49,569 - INFO - max_arc_length 999999 <--- None
2025-06-20 16:35:49,569 - INFO - velocity_bound 0.1 0.1
2025-06-20 16:35:49,569 - INFO - dem_error_bound 250.0 <--- 100.0
2025-06-20 16:35:49,569 - INFO - num_optimization_samples 100 100
2025-06-20 16:35:49,569 - INFO - arc_unwrapping_coherence 0.6 0.6
2025-06-20 16:35:49,569 - INFO - min_num_arc 3 3
2025-06-20 16:35:49,569 - INFO -
2025-06-20 16:35:49,713 - INFO - reading box None from file: /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/outputs_edowntownsouth2021/temporal_coherence.h5 ...

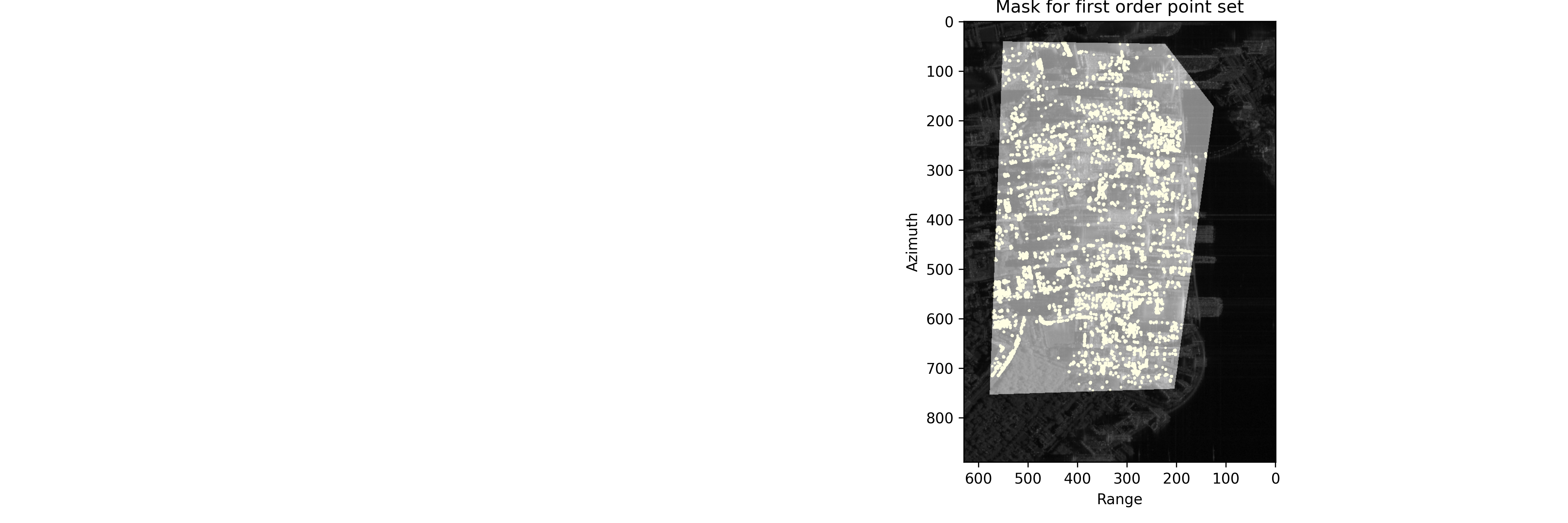

2025-06-20 16:35:51,748 - INFO - load mask for area of interest from: /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/inputs/maskPoly.h5.
2025-06-20 16:35:54,155 - INFO - reading box None from file: /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/outputs_edowntownsouth2021/ifg_stack.h5 ...
2025-06-20 16:35:59,082 - INFO - write data to /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/outputs_edowntownsouth2021/p1_ifg_wr.h5...
2025-06-20 16:35:59,135 - INFO - create distance matrix between all points...
2025-06-20 16:36:05,591 - INFO - Triangulate points with 50-nearest neighbours.
2025-06-20 16:36:07,585 - DEBUG - time used: 00 mins 2.0 secs.
2025-06-20 16:36:07,585 - INFO - Triangulate points with global delaunay.
2025-06-20 16:36:07,979 - INFO - remove arcs with length > 999999.
2025-06-20 16:36:08,544 - INFO - retrieve arcs from adjacency matrix.
2025-06-20 16:36:09,319 - INFO - no. arcs: 366704
2025-06-20 16:36:32,779 - INFO - ifg arc observations created.
2025-06-20 16:36:32,779 - INFO - write data to /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/outputs_edowntownsouth2021/point_network.h5...

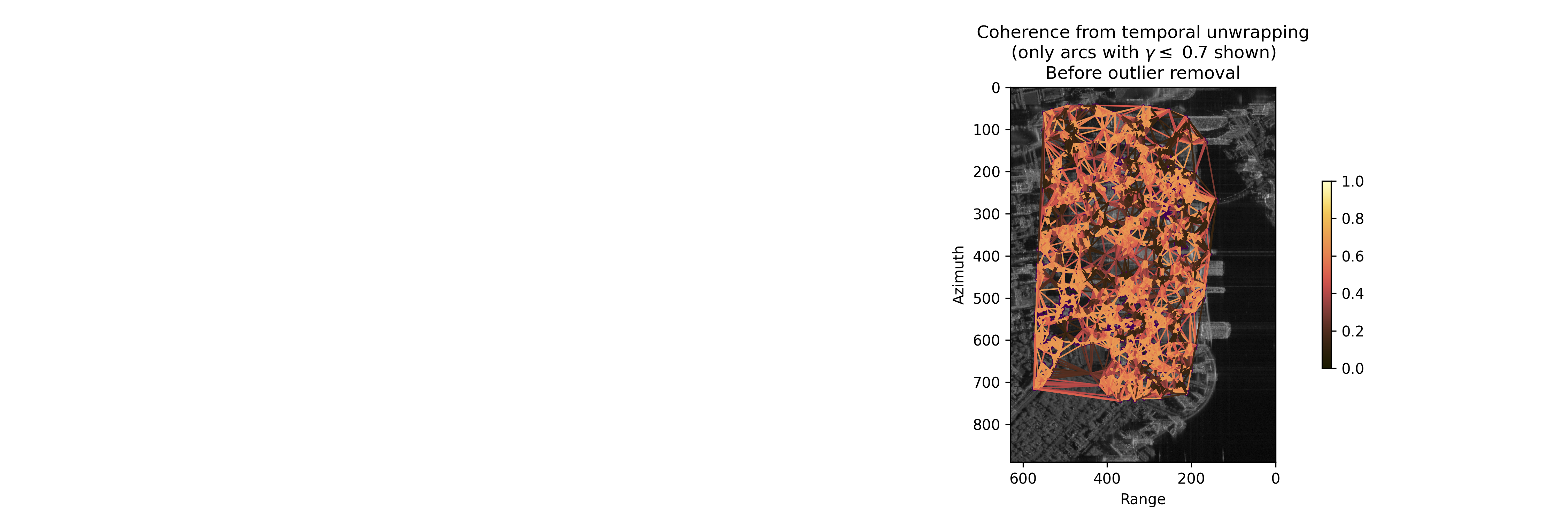

2025-06-20 16:36:36,058 - INFO - ########## TEMPORAL UNWRAPPING: AMBIGUITY FUNCTION ##########
2025-06-20 16:36:36,059 - INFO - start parallel processing with 36 cores.
2025-06-20 16:38:48,929 - INFO - Finished temporal unwrapping.
2025-06-20 16:38:48,929 - DEBUG - time used: 02 mins 12.9 secs.
2025-06-20 16:38:48,936 - INFO - write data to /scratch/08590/emrhnp/MiamiTsxSMDT36/Downtown_south2021/outputs_edowntownsouth2021/point_network_parameter.h5...

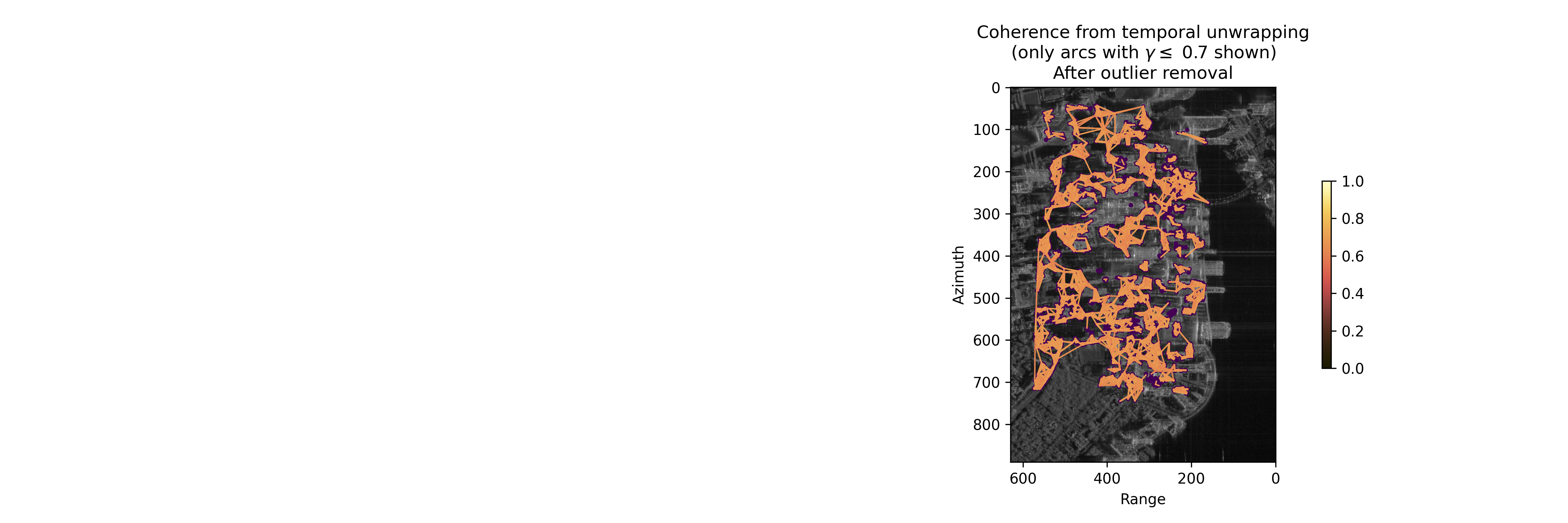

2025-06-20 16:40:19,790 - INFO - Detect points with low quality arcs (mean): < 0.6
2025-06-20 16:40:19,795 - INFO - Removal of points whose arcs are incoherent in average.
2025-06-20 16:41:10,199 - INFO - Detected 2017 point(s) with mean coherence of all connected arcs < 0.6
2025-06-20 16:41:10,199 - INFO - Removal of low quality arcs: < 0.6
2025-06-20 16:41:10,200 - INFO - Removed 70228 arc(s)
2025-06-20 16:41:10,505 - INFO - Removal of arcs and PSC that cannot be tested.
2025-06-20 16:41:39,503 - INFO - Detected 35 point(s) with less than 3 arcs
2025-06-20 16:41:39,503 - INFO - Remove 2017 point(s)
2025-06-20 16:42:20,329 - INFO - Removed 42606 arc(s) connected to the removed point(s)
2025-06-20 16:42:44,460 - INFO - ########## NOISY POINT REMOVAL BASED ON ARC PARAMETERS ##########
2025-06-20 16:42:44,461 - INFO - Selection of the reference PSC
2025-06-20 16:42:59,969 - INFO - Spatial integration to detect noisy point
2025-06-20 16:42:59,969 - INFO - ITERATION: 0
2025-06-20 16:43:30,352 - ERROR - Singular normal matrix. Network is no longer connected!
