qqKrakatoaSenAT171
miaplpy_202105_202409/network_delaunay_4/pic

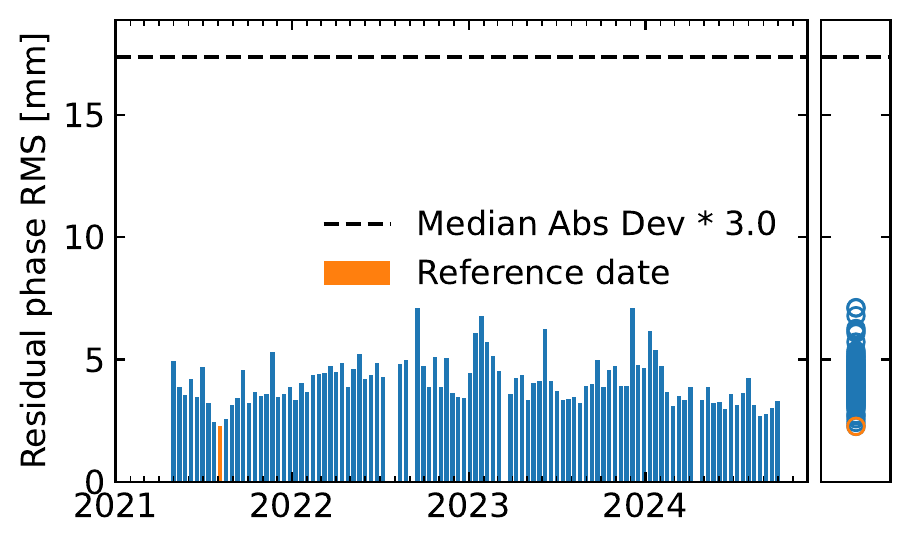

reference_date.txt
20210805

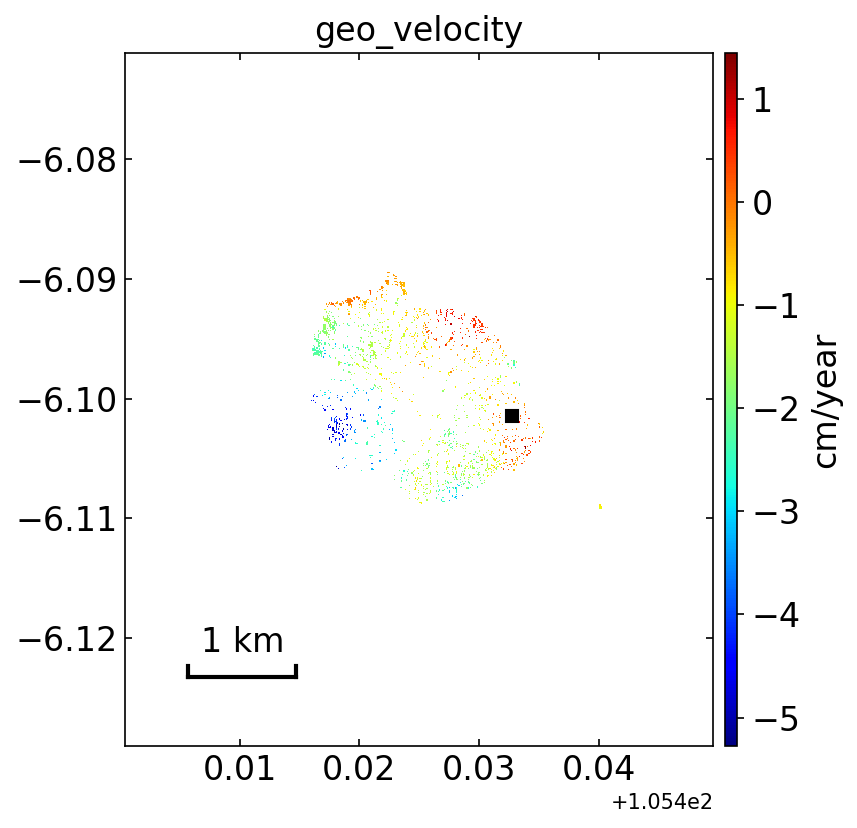

geo_velocity.kmz
Download file.
qqKrakatoaSenAT171.template
####################
####################
ssaraopt.platform = SENTINEL-1A,SENTINEL-1B
ssaraopt.relativeOrbit = 171
ssaraopt.startDate = 20210501
####################
topsStack.boundingBox = -6.4 -6.0 105.1 106.1 # '-1 0.15 -91.6 -90.9'
topsStack.subswath = 3 # '1 2'
topsStack.azimuthLooks = 2 # comment
topsStack.rangeLooks = 6 # comment
####################
topsStack.filtStrength = 0.2 # comment
topsStack.unwMethod = snaphu # comment
topsStack.coregistration = auto # [NESD geometry], auto for NESD
####################
mintpy.load.autoPath = yes
mintpy.compute.numWorker = 32
mintpy.compute.cluster = local
mintpy.troposphericDelay.method = no #[pyaps / height_correlation / base_trop_cor / no], auto for pyaps
mintpy.network.startDate = auto # [20090101 / no], auto for no
mintpy.geocode.laloStep = auto #[-0.000555556,0.000555556 / None], auto for None, output resolution in degree
mintpy.solidEarthTides = no #[yes / no], auto for no
mintpy.save.hdfEos5 = yes # [yes / update / no], auto for no, save timeseries to UNAVCO InSAR Archive format
mintpy.save.hdfEos5.update = no # [yes / no], auto for no, put XXXXXXXX as endDate in output filename
mintpy.save.hdfEos5.subset = yes #[yes / no], auto for no, put subset range info in output filename
####################
minsar.miaplpyDir.addition = date #[name / lalo / no ] auto for no (miaply_$name_startDate_endDate))
miaplpy.load.autoPath = yes
miaplpy.load.processor = isce
miaplpy.multiprocessing.numProcessor = 40

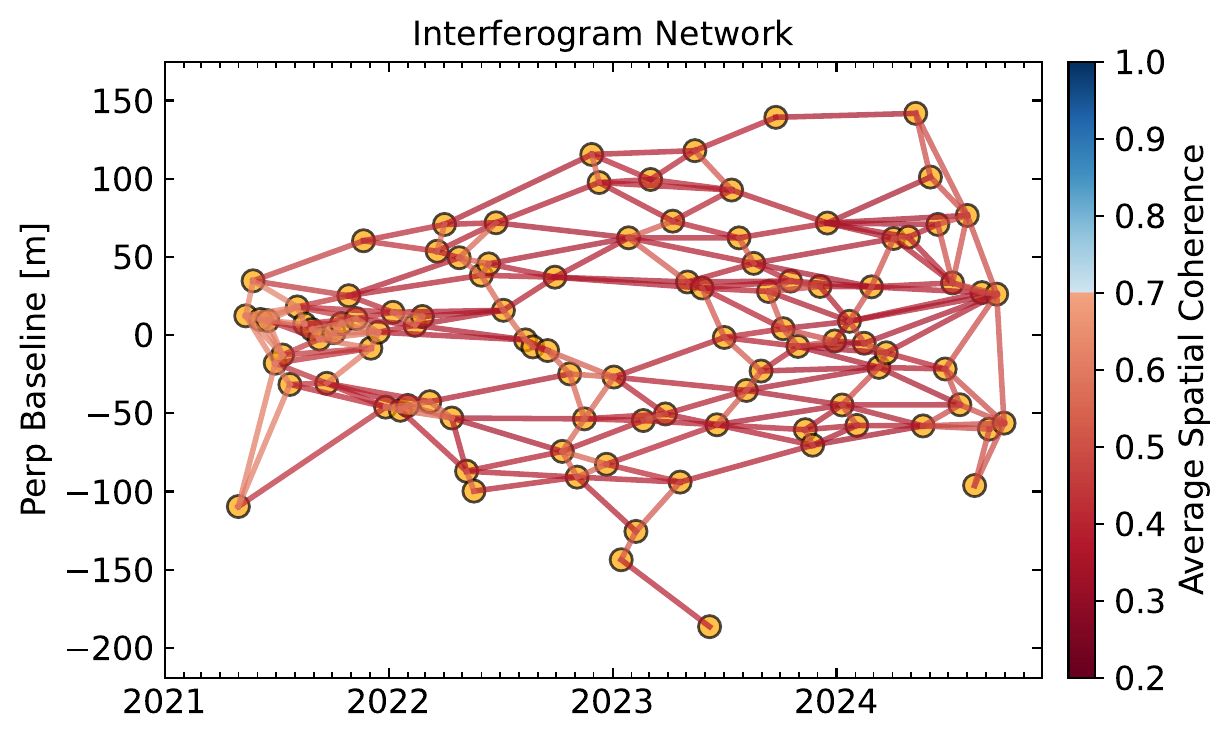

miaplpy.interferograms.networkType = delaunay # network
#mintpy.reference.lalo = -6.0906, 105.4230 #
mintpy.subset.lalo = -6.12:-6.08,105.41:105.44 #[31.5:32.5,130.5:131.0 / no], auto for no
miaplpy.subset.lalo = -6.12:-6.08,105.41:105.44 #[31.5:32.5,130.5:131.0 / no], auto for no
####################

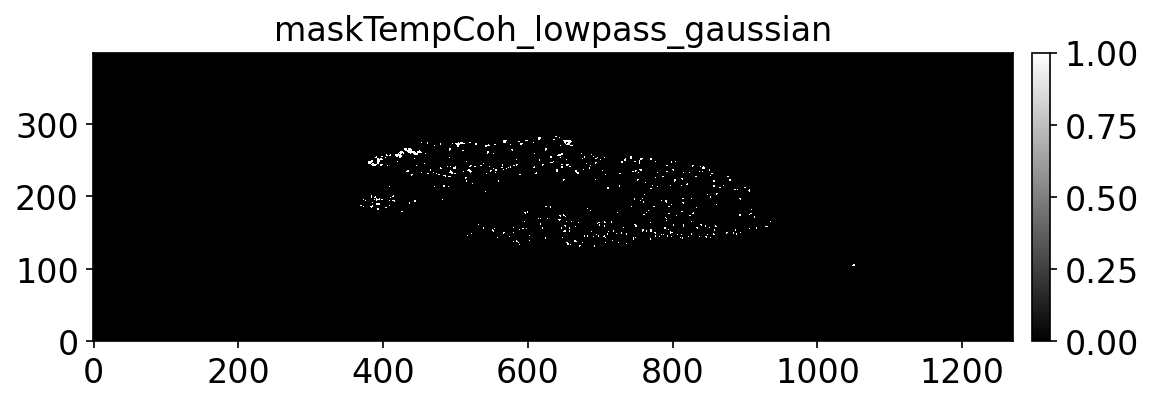

mintpy.networkInversion.minTempCoh = 0.65 #[0.0-1.0], auto for 0.7, min temporal coherence for mask
miaplpy.timeseries.minTempCoh = 0.65 # auto for 0.5
miaplpy.interferograms.networkType = single_reference
miaplpy.interferograms.networkType = delaunay
####################
minsar.insarmaps_flag = True
minsar.insarmaps_dataset = filt*DS
minsar.upload_option = --geo
