miaplpy_ElbPhil_202001_202412
outputs/pic
config.json
{
general: {
input_path: "inputs/",
output_path: "outputs",
logfile_path: "outputs",
num_cores: 10,
num_patches: 1,
apply_temporal_unwrapping: true,
spatial_unwrapping_method: "puma",
logging_level: "INFO",
},
phase_linking: {
use_phase_linking_results: false,
inverted_path: "inverted/",
num_siblings: 20,
mask_phase_linking_file: "",
use_ps: false,
mask_ps_file: "maskPS.h5",
},
preparation: {
start_date: "",
end_date: "",
ifg_network_type: "sb",
num_ifgs: 3,
max_tbase: 400,
filter_window_size: 9,
},
consistency_check: {
coherence_p1: 0.7,
grid_size: 0,
mask_p1_file: "",
mask_p1_file: "maskfiles/maskPoly.h5",
num_nearest_neighbours: 30,
max_arc_length: null,
velocity_bound: 0.1,
dem_error_bound: 100.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
min_num_arc: 3,
},
unwrapping: {
use_arcs_from_temporal_unwrapping: true,
},
filtering: {
coherence_p2: 0.8,
apply_aps_filtering: true,
interpolation_method: "kriging",
grid_size: 1000,
mask_p2_file: "",
use_moving_points: true,
max_temporal_autocorrelation: 0.3,
},
densification: {
num_connections_to_p1: 5,
max_distance_to_p1: 2000,
velocity_bound: 0.15,
dem_error_bound: 250.0,
num_optimization_samples: 100,
arc_unwrapping_coherence: 0.5,
},
}
sarvey_2025-07-25-13-16-08.log
2025-07-25 13:16:08,202 - INFO - SARvey version: 1.2.2 - Strawberry Pie, 2025-07-09_01, Run: MTInSAR
2025-07-25 13:16:08,203 - INFO - Parameter value default
2025-07-25 13:16:08,203 - INFO - _________ _____ _______
2025-07-25 13:16:08,203 - INFO - input_path inputs/ inputs/
2025-07-25 13:16:08,203 - INFO - output_path /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs <--- outputs/
2025-07-25 13:16:08,203 - INFO - num_cores 10 <--- 50
2025-07-25 13:16:08,203 - INFO - num_patches 1 1
2025-07-25 13:16:08,203 - INFO - apply_temporal_unwrapping True True
2025-07-25 13:16:08,203 - INFO - spatial_unwrapping_method puma puma
2025-07-25 13:16:08,203 - INFO - logging_level INFO INFO
2025-07-25 13:16:08,203 - INFO - logfile_path outputs <--- logfiles/
2025-07-25 13:16:08,203 - INFO -
2025-07-25 13:16:08,203 - INFO - ---------------------------------------------------------------------------------

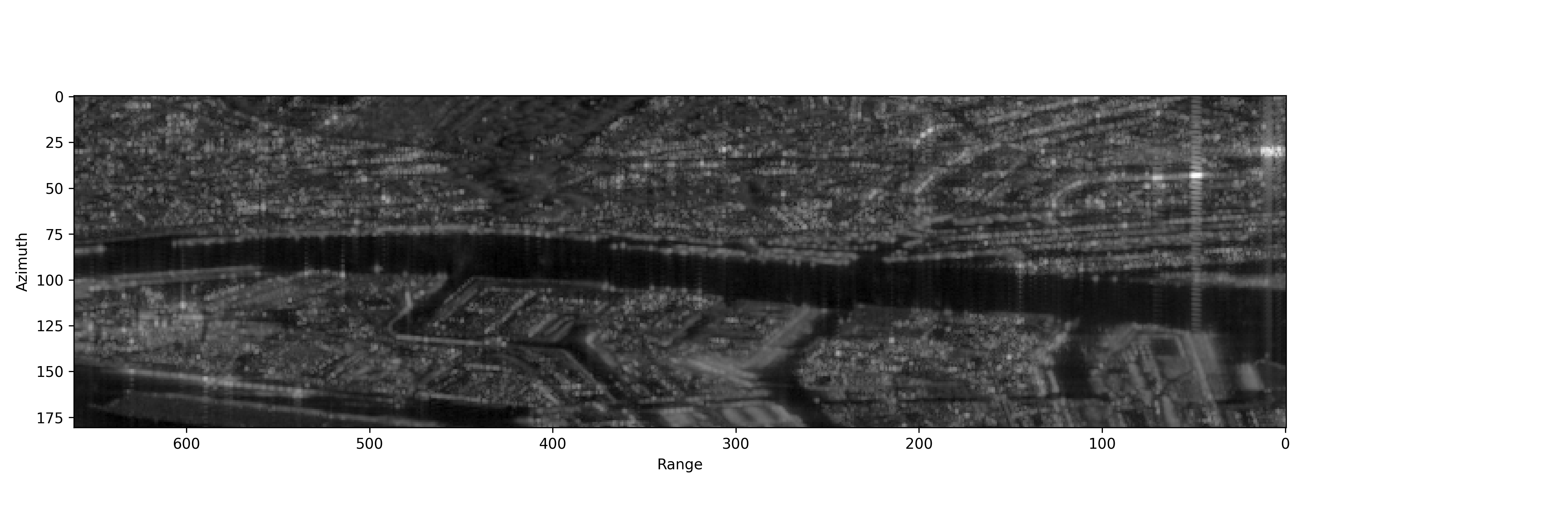

2025-07-25 13:16:08,203 - INFO - STEP 0: PREPARATION
2025-07-25 13:16:08,203 - INFO - ---------------------------------------------------------------------------------
2025-07-25 13:16:08,203 - INFO - Parameter value default
2025-07-25 13:16:08,203 - INFO - _________ _____ _______
2025-07-25 13:16:08,203 - INFO - start_date None None
2025-07-25 13:16:08,203 - INFO - end_date None None
2025-07-25 13:16:08,203 - INFO - ifg_network_type sb sb
2025-07-25 13:16:08,203 - INFO - num_ifgs 3 3
2025-07-25 13:16:08,203 - INFO - max_tbase 400 <--- 100
2025-07-25 13:16:08,203 - INFO - filter_window_size 9 9
2025-07-25 13:16:08,203 - INFO -
2025-07-25 13:16:08,203 - INFO - ########## PREPARE PROCESSING: LOAD INPUT ##########
2025-07-25 13:16:08,210 - INFO - Orbit direction: DESCENDING
2025-07-25 13:16:08,210 - DEBUG - Use all 210 images in SLC stack. Time frame: 2020-01-06 - 2024-12-28
2025-07-25 13:16:08,210 - INFO - Start date: 2020-01-06
2025-07-25 13:16:08,210 - INFO - Stop date: 2024-12-28
2025-07-25 13:16:08,210 - INFO - Number of SLC: 210

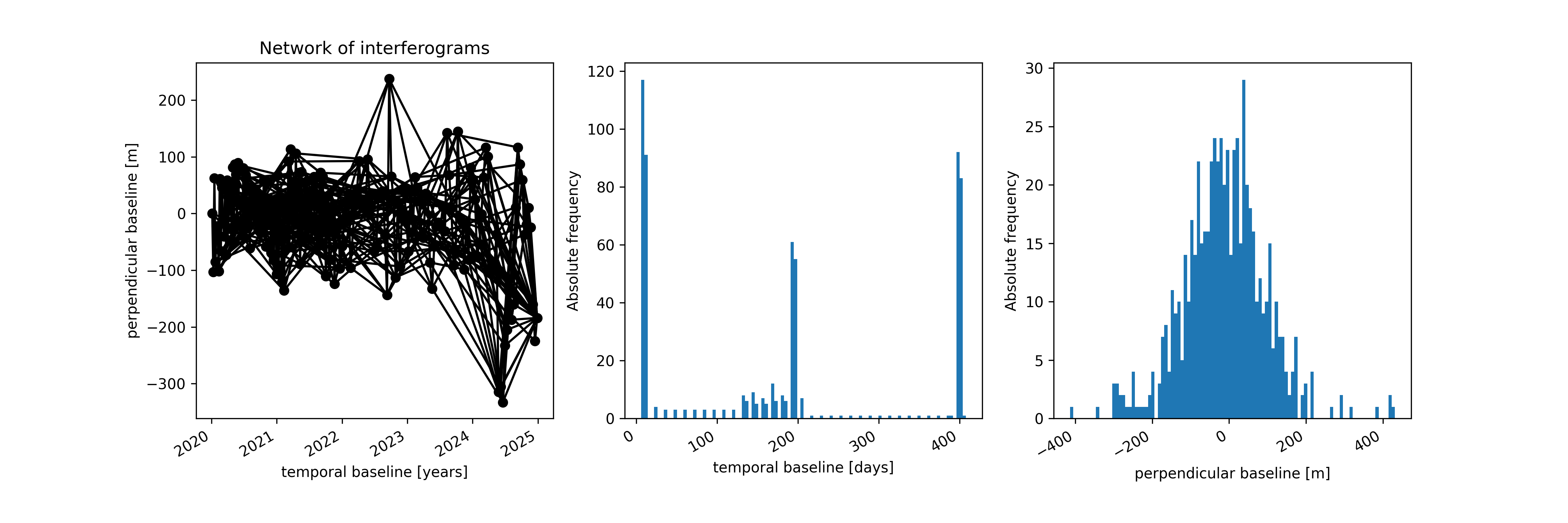

2025-07-25 13:16:08,210 - INFO - ########## DESIGN IFG NETWORK ##########
2025-07-25 13:16:08,212 - INFO - Small baseline network
2025-07-25 13:16:08,212 - INFO - write IfgNetwork to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/ifg_network.h5
2025-07-25 13:16:08,213 - INFO - temporal baselines: [ 6 12 24 36 48 60 72 84 96 108 120 132 138 144 150 156 162 168
174 180 186 192 198 204 216 228 240 252 264 276 288 300 312 324 336 348
360 372 384 390 396 402 408]
2025-07-25 13:16:08,784 - INFO - ########## GENERATE STACK OF 623 INTERFEROGRAMS & ESTIMATE TEMPORAL COHERENCE ##########
2025-07-25 13:16:08,786 - INFO - Prepare dataset: ifgs of in size of (181, 662, 623)

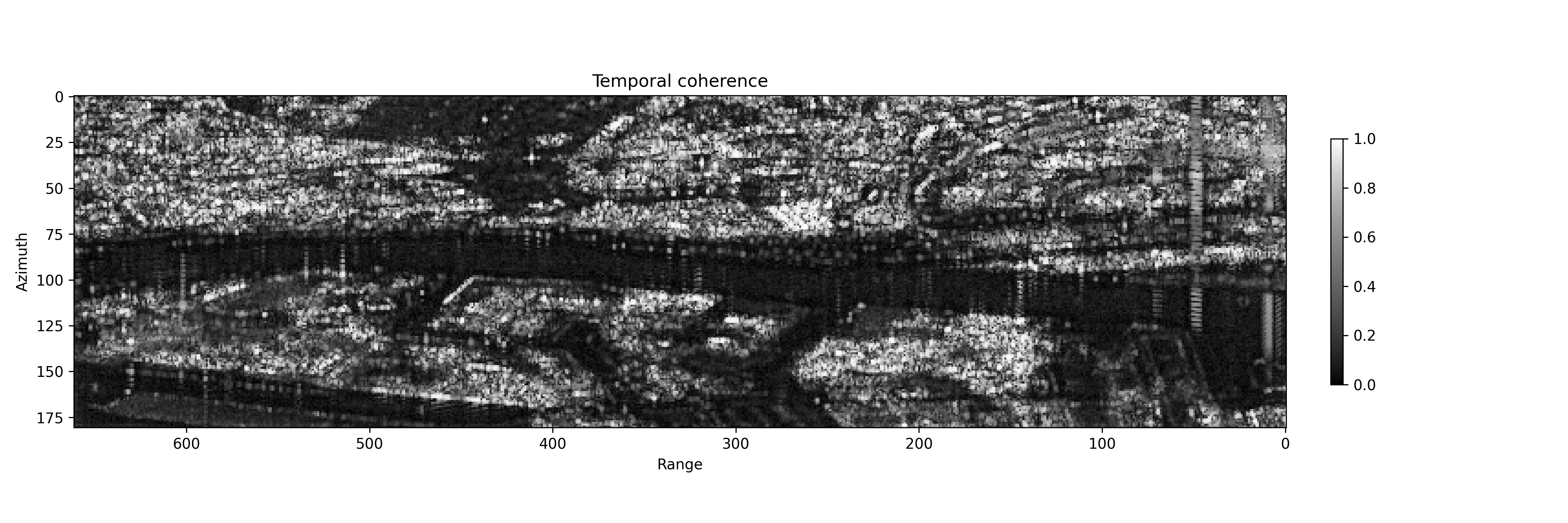

2025-07-25 13:16:08,789 - INFO - Prepare dataset: temp_coh of in size of (181, 662)
2025-07-25 13:16:18,351 - INFO - Patches processed: 1/1
2025-07-25 13:16:18,352 - DEBUG -
time used: 00 mins 9.6 secs.
2025-07-25 13:16:18,367 - INFO - Transform coordinates from latitude and longitude (WGS84) to North and East (UTM).
2025-07-25 13:16:18,414 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/coordinates_utm.h5...
2025-07-25 13:16:18,416 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/background_map.h5...
2025-07-25 13:16:18,619 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/temporal_coherence.h5 ...
2025-07-25 13:16:18,828 - INFO - Finished step 0 PREPARATION normally in 00 mins 10.6 secs.
2025-07-25 13:16:18,828 - INFO - ---------------------------------------------------------------------------------
2025-07-25 13:16:18,828 - INFO - STEP 1: CONSISTENCY CHECK
2025-07-25 13:16:18,828 - INFO - ---------------------------------------------------------------------------------
2025-07-25 13:16:18,828 - INFO - Parameter value default
2025-07-25 13:16:18,828 - INFO - _________ _____ _______
2025-07-25 13:16:18,828 - INFO - coherence_p1 0.7 <--- 0.9
2025-07-25 13:16:18,828 - INFO - grid_size None <--- 200
2025-07-25 13:16:18,828 - INFO - mask_p1_file /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/maskfiles/maskPoly.h5 <---
2025-07-25 13:16:18,828 - INFO - num_nearest_neighbours 30 30
2025-07-25 13:16:18,828 - INFO - max_arc_length 999999 <--- None
2025-07-25 13:16:18,828 - INFO - velocity_bound 0.1 0.1
2025-07-25 13:16:18,828 - INFO - dem_error_bound 100.0 100.0
2025-07-25 13:16:18,828 - INFO - num_optimization_samples 100 100
2025-07-25 13:16:18,828 - INFO - arc_unwrapping_coherence 0.5 <--- 0.6
2025-07-25 13:16:18,828 - INFO - min_num_arc 3 3
2025-07-25 13:16:18,828 - INFO -
2025-07-25 13:16:18,829 - DEBUG - Reading temporal coherence file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/temporal_coherence.h5
2025-07-25 13:16:18,829 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/temporal_coherence.h5 ...
2025-07-25 13:16:18,830 - DEBUG - [Min, Max] of all temporal coherence pixels: [0.00, 1.00].)
2025-07-25 13:16:18,830 - DEBUG - [Min, Max] of all temporal coherence pixels excluding invalid values: [0.00, 1.00].)

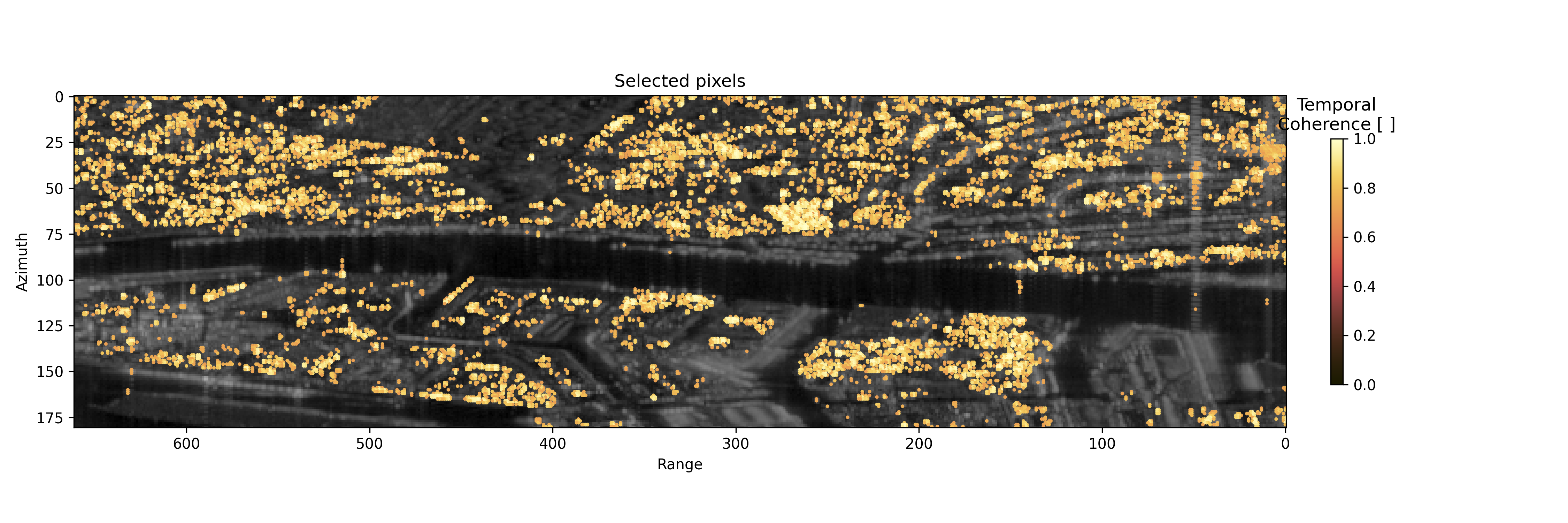

2025-07-25 13:16:18,830 - DEBUG - Number of selected pixels using 0.70 temporal coherence threshold: 13174
2025-07-25 13:16:18,830 - DEBUG - Plotting selected pixels...

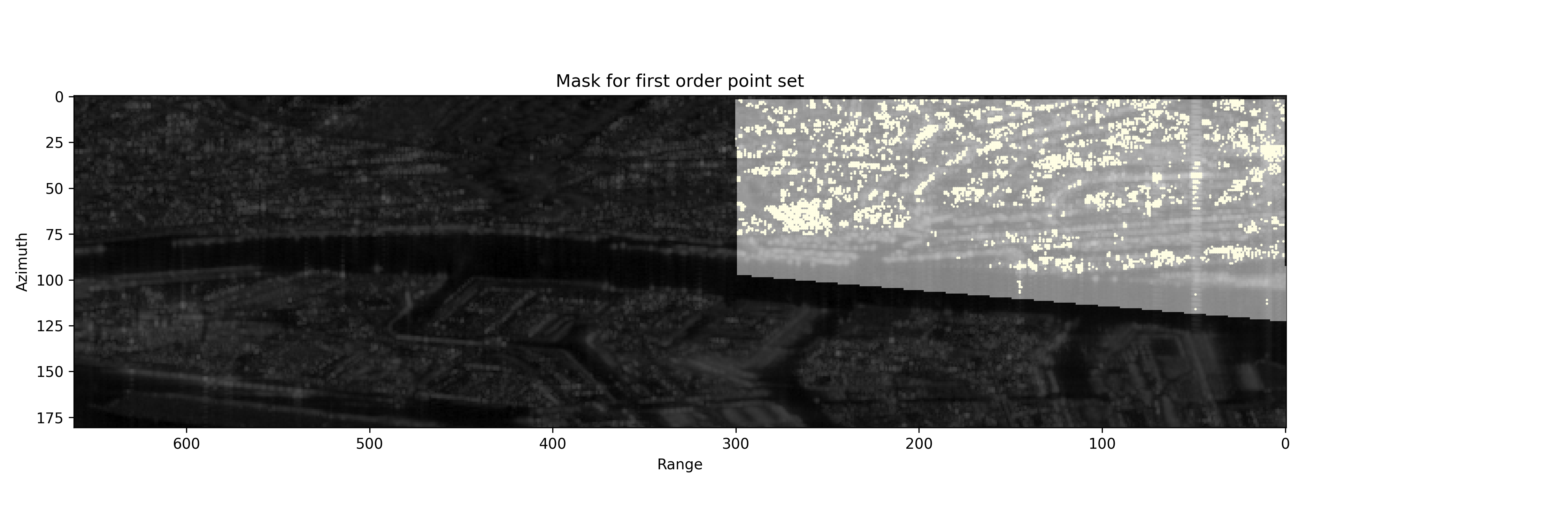

2025-07-25 13:16:19,170 - INFO - load mask for area of interest from: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/maskfiles/maskPoly.h5.
2025-07-25 13:16:19,509 - INFO - reading box None from file: /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/ifg_stack.h5 ...
2025-07-25 13:16:19,653 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/p1_ifg_wr.h5...
2025-07-25 13:16:19,657 - DEBUG - Triangulating 4572 points...
2025-07-25 13:16:19,657 - DEBUG - Initializing Point Network Triangulation with 4572 points...
2025-07-25 13:16:19,658 - DEBUG - Map coordinates available. Creating distance matrix between all 4572 points...
2025-07-25 13:16:19,658 - DEBUG - [Min, Max] of x coordinates: [564751.34/565949.90]
2025-07-25 13:16:19,658 - DEBUG - [Min, Max] of y coordinates: [5932558.94/5934263.68]
2025-07-25 13:16:20,267 - DEBUG - Triangulating points with 30-nearest neighbours....
2025-07-25 13:16:20,426 - DEBUG - time used for knn triangulation: 00 mins 0.2 secs.
2025-07-25 13:16:20,426 - DEBUG - Triangulating points with global delaunay...
2025-07-25 13:16:20,440 - DEBUG - Number of triangles in Delaunay triangulation: 9050
2025-07-25 13:16:20,567 - DEBUG - Triangulation arc lengths - Min: 2 m, Max: 1870 m, Mean: 605 m.
2025-07-25 13:16:20,574 - DEBUG - Removing 0 arcs with distance longer that 999999.
2025-07-25 13:16:20,656 - DEBUG - Triangulation arc lengths after long arc removal - Min: 2 m, Max: 1870 m, Mean: 605 m.
2025-07-25 13:16:20,660 - INFO - Retrieve arcs from adjacency matrix.
2025-07-25 13:16:20,660 - DEBUG - Extracting arcs from adjacency matrix with size (4572, 4572)...
2025-07-25 13:16:20,763 - DEBUG - Final number of arcs: 78400.
2025-07-25 13:16:20,829 - DEBUG - Final triangulation arc lengths - Min: 2 m, Max: 1870 m, Mean: 605 m.
2025-07-25 13:16:23,132 - INFO - ifg arc observations created.
2025-07-25 13:16:23,132 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/point_network.h5...

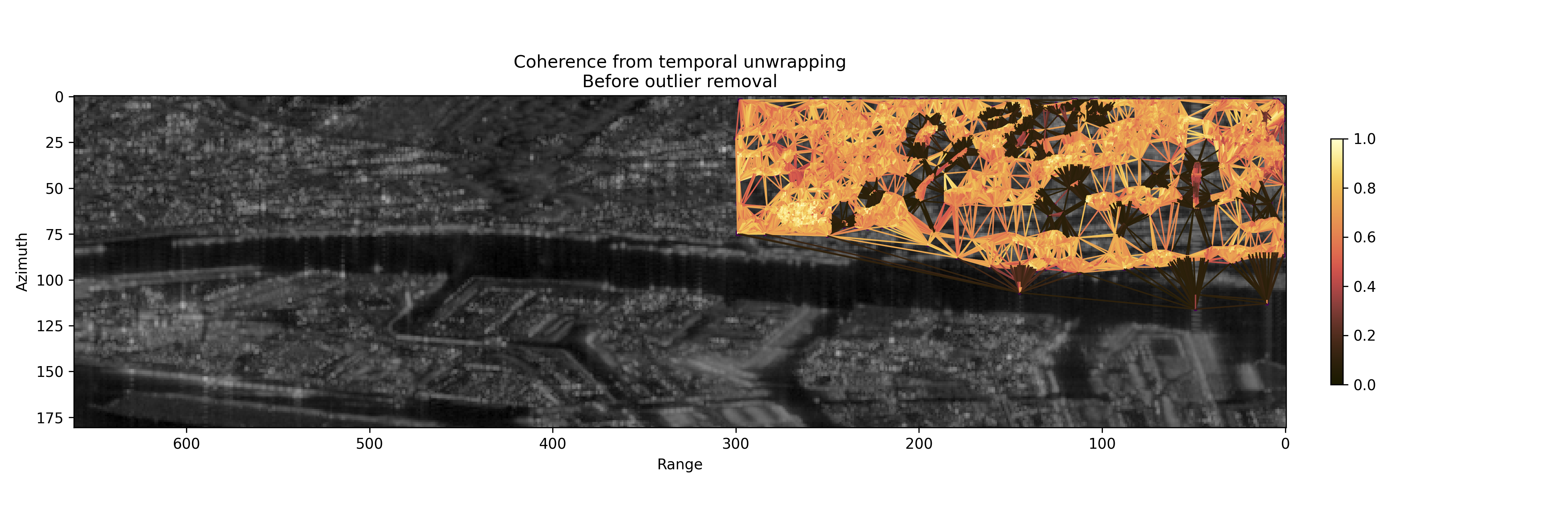

2025-07-25 13:16:23,230 - INFO - ########## TEMPORAL UNWRAPPING: AMBIGUITY FUNCTION ##########
2025-07-25 13:16:23,230 - INFO - start parallel processing with 10 cores.
2025-07-25 13:17:14,111 - INFO - Finished temporal unwrapping.
2025-07-25 13:17:14,111 - DEBUG - time used: 00 mins 50.9 secs.
2025-07-25 13:17:14,118 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/point_network_parameter.h5...
2025-07-25 13:17:15,426 - INFO - Detect points with low quality arcs (mean): < 0.5
2025-07-25 13:17:15,426 - INFO - Removal of points whose arcs are incoherent in average.
2025-07-25 13:17:17,640 - INFO - Detected 273 point(s) with mean coherence of all connected arcs < 0.5
2025-07-25 13:17:17,641 - INFO - Removal of low quality arcs: < 0.5
2025-07-25 13:17:17,641 - INFO - Removed 5192 arc(s)
2025-07-25 13:17:17,684 - INFO - Removal of arcs and PSC that cannot be tested.
2025-07-25 13:17:20,074 - INFO - Detected 15 point(s) with less than 3 arcs
2025-07-25 13:17:20,074 - INFO - Remove 273 point(s)
2025-07-25 13:17:21,820 - INFO - Removed 3579 arc(s) connected to the removed point(s)
2025-07-25 13:17:23,097 - INFO - ########## NOISY POINT REMOVAL BASED ON ARC PARAMETERS ##########
2025-07-25 13:17:23,097 - INFO - Selection of the reference PSC
2025-07-25 13:17:24,076 - INFO - Spatial integration to detect noisy point

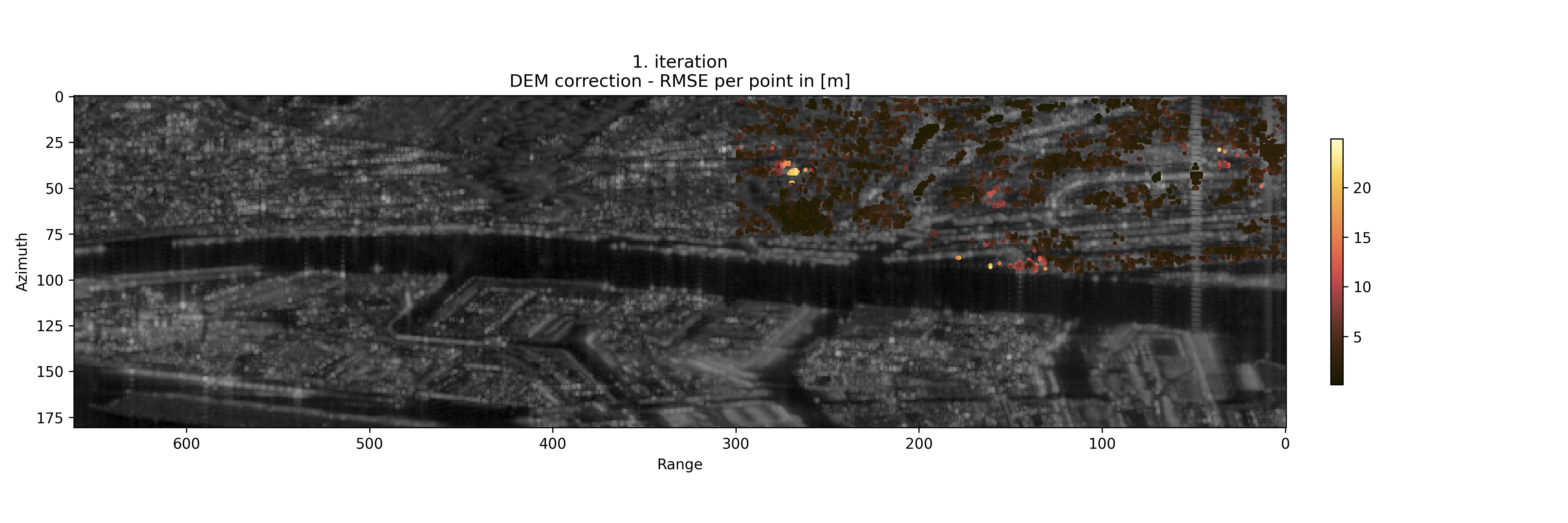

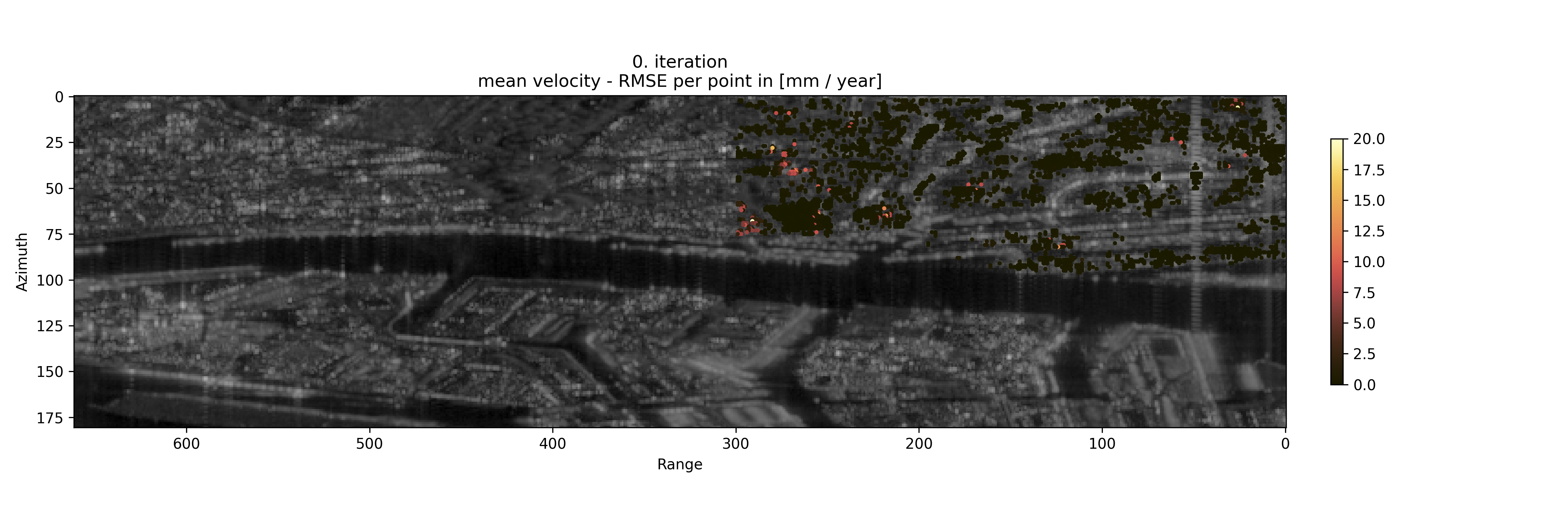

2025-07-25 13:17:24,076 - INFO - ITERATION: 0
2025-07-25 13:17:59,626 - INFO - Maximum RMSE DEM correction: 24.93 m
2025-07-25 13:17:59,626 - INFO - Maximum RMSE velocity: 0.0287 m / year
2025-07-25 13:18:01,682 - INFO - Removed 48 arc(s) connected to the removed point(s)

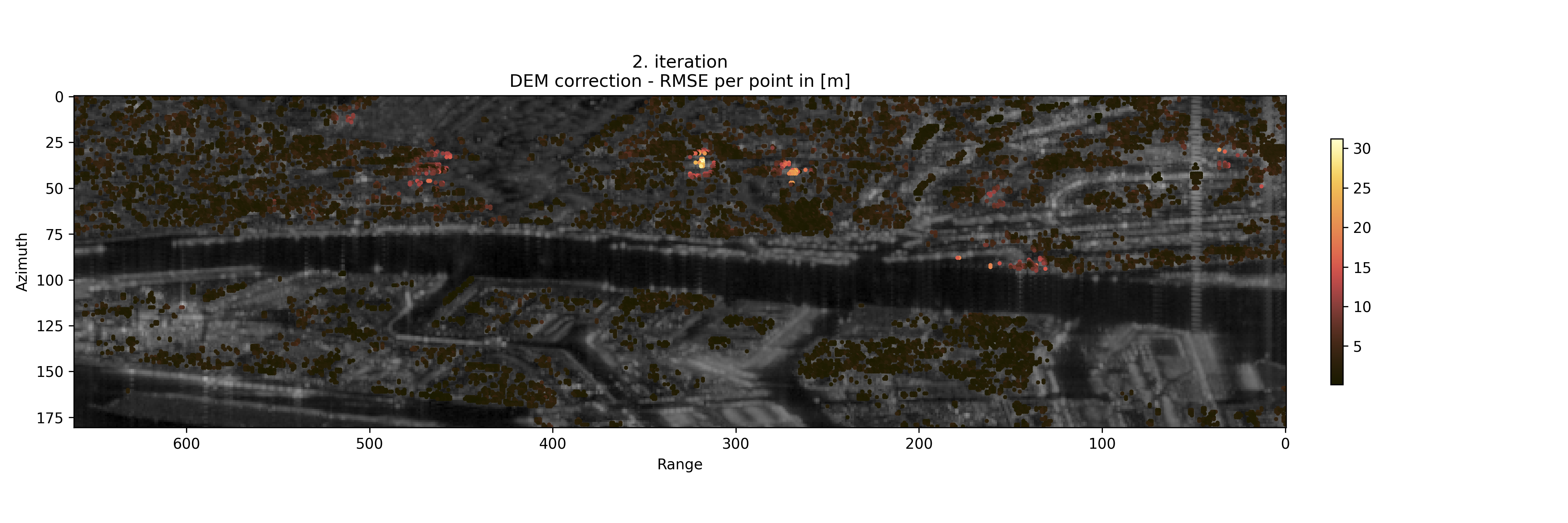

2025-07-25 13:18:01,718 - INFO - ITERATION: 1
2025-07-25 13:18:35,325 - INFO - Maximum RMSE DEM correction: 24.93 m
2025-07-25 13:18:35,325 - INFO - Maximum RMSE velocity: 0.0190 m / year
2025-07-25 13:18:35,836 - INFO - No noisy pixels detected.
2025-07-25 13:18:35,837 - DEBUG - time used: 01 mins 11.8 secs.
2025-07-25 13:18:35,837 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/point_network_parameter.h5...
2025-07-25 13:18:35,993 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/p1_ifg_wr.h5...
2025-07-25 13:18:36,057 - INFO - Finished step 1 CONSISTENCY CHECK normally in 02 mins 17.2 secs.
2025-07-25 13:18:36,057 - INFO - ---------------------------------------------------------------------------------
2025-07-25 13:18:36,057 - INFO - STEP 2: UNWRAPPING
2025-07-25 13:18:36,057 - INFO - ---------------------------------------------------------------------------------
2025-07-25 13:18:36,058 - INFO - Parameter value default
2025-07-25 13:18:36,058 - INFO - _________ _____ _______
2025-07-25 13:18:36,058 - INFO - use_arcs_from_temporal_unwrapping True True
2025-07-25 13:18:36,058 - INFO -
2025-07-25 13:18:36,147 - INFO - read from /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/p1_ifg_wr.h5
2025-07-25 13:18:36,179 - INFO - Integrate parameters from arcs to points.

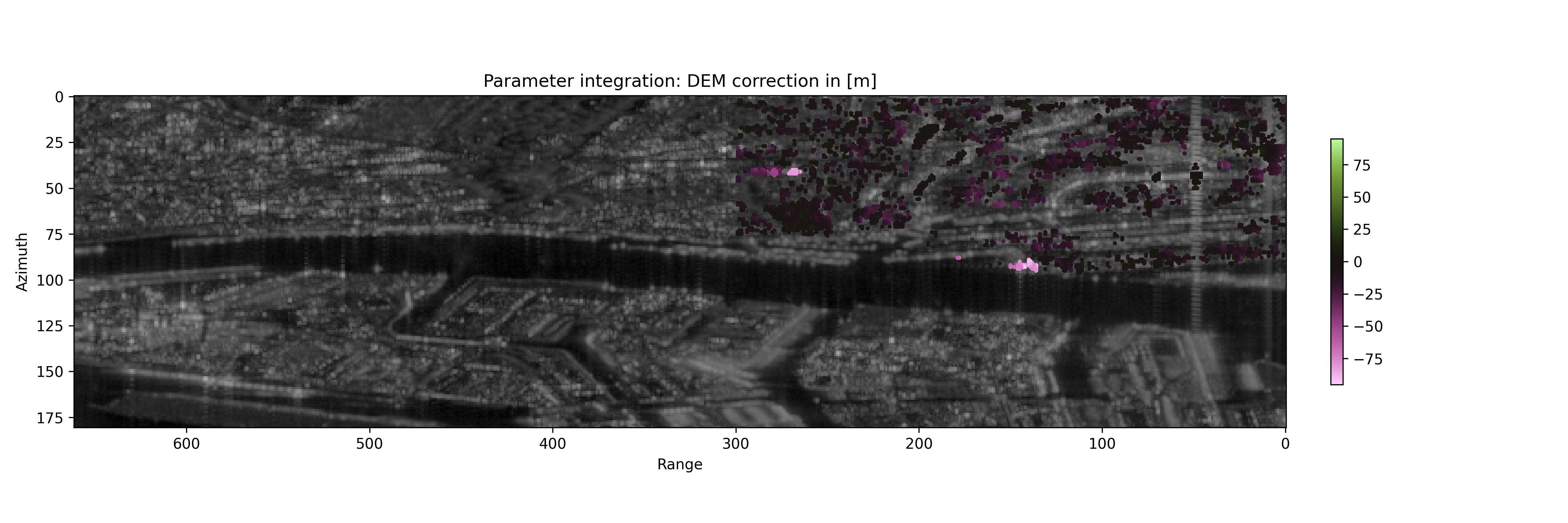

2025-07-25 13:18:36,179 - INFO - Integrate DEM correction.
2025-07-25 13:18:38,171 - DEBUG - time used: 00 mins 0.1 secs.

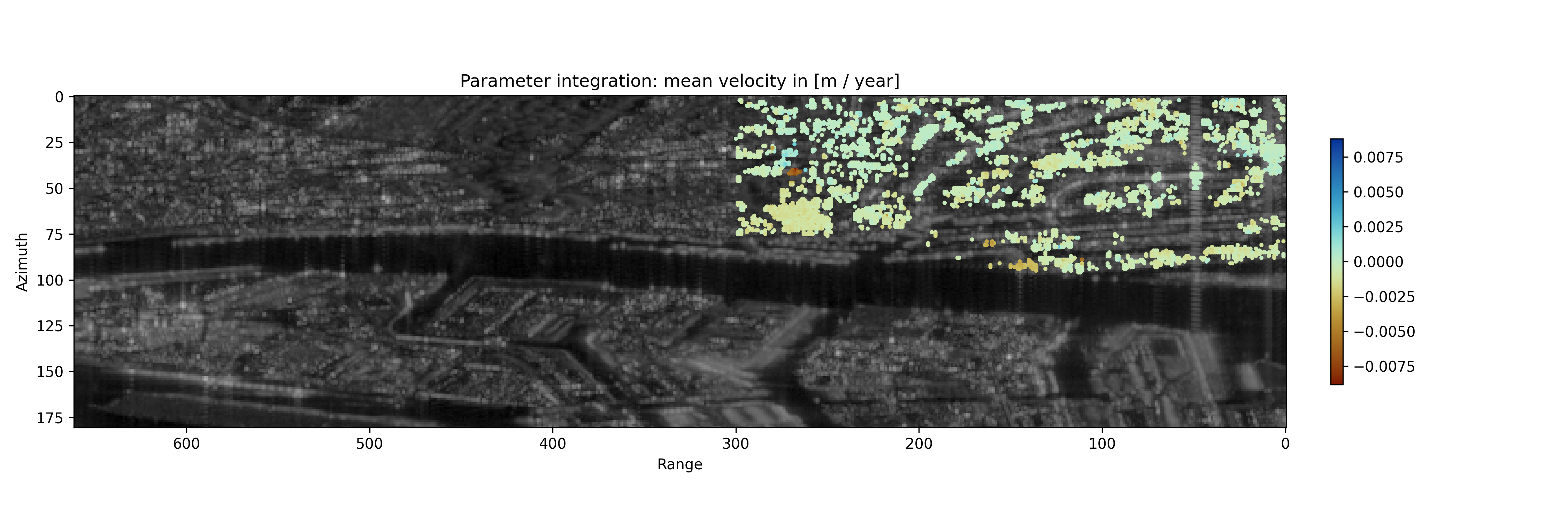

2025-07-25 13:18:38,423 - INFO - Integrate mean velocity.
2025-07-25 13:18:40,520 - DEBUG - time used: 00 mins 0.1 secs.
2025-07-25 13:18:40,768 - INFO - Remove phase contributions from mean velocity and DEM correction from wrapped phase of points.
2025-07-25 13:18:40,906 - INFO - ########## SPATIAL UNWRAPPING: puma ##########
2025-07-25 13:18:40,906 - INFO - start parallel processing with 10 cores.
2025-07-25 13:18:46,502 - DEBUG - time used: 00 mins 5.6 secs.
2025-07-25 13:18:46,507 - INFO - Add phase contributions from mean velocity and DEM correction back to spatially unwrapped residual phase.
2025-07-25 13:18:46,671 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/p1_ifg_unw.h5...
2025-07-25 13:18:46,676 - INFO - ########## INVERT IFG NETWORK ##########
2025-07-25 13:19:49,207 - DEBUG - time used: 01 mins 2.5 secs.
2025-07-25 13:19:49,208 - INFO - read from /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/p1_ifg_unw.h5
2025-07-25 13:19:49,249 - INFO - write data to /Users/famelung/Library/CloudStorage/OneDrive-UniversityofMiami/scratch/HamburgSenD66/miaplpy_ElbPhil_202001_202412/outputs/p1_ts.h5...
2025-07-25 13:19:49,258 - INFO - Finished step 2 UNWRAPPING normally in 01 mins 13.2 secs.
2025-07-25 13:19:49,258 - INFO - SARvey MTI finished normally in in 03 mins 41.1 secs.
