ColomboSenD19
miaplpy_Colombo_201906_202412/network_delaunay_4/pic
reference_date.txt
20201222

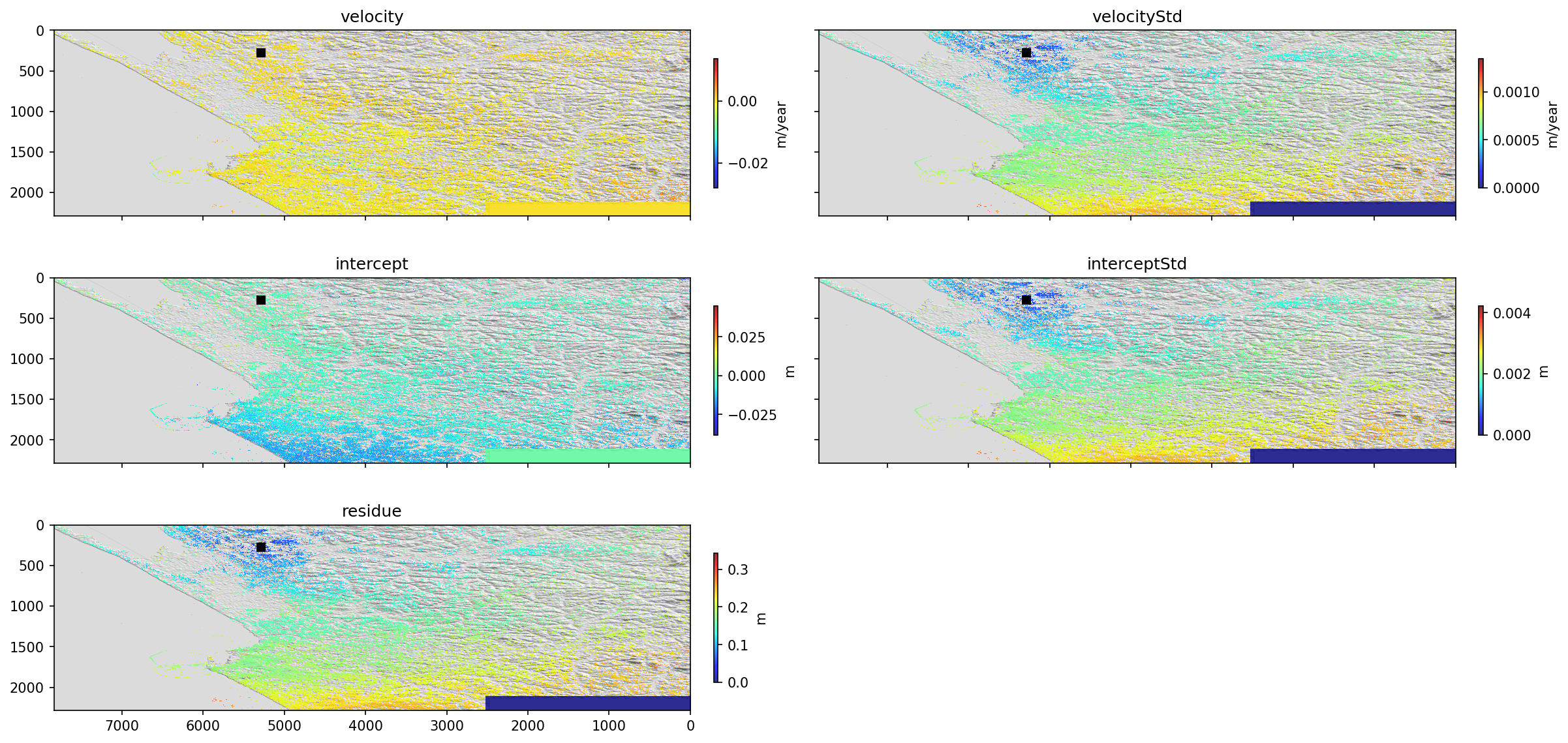

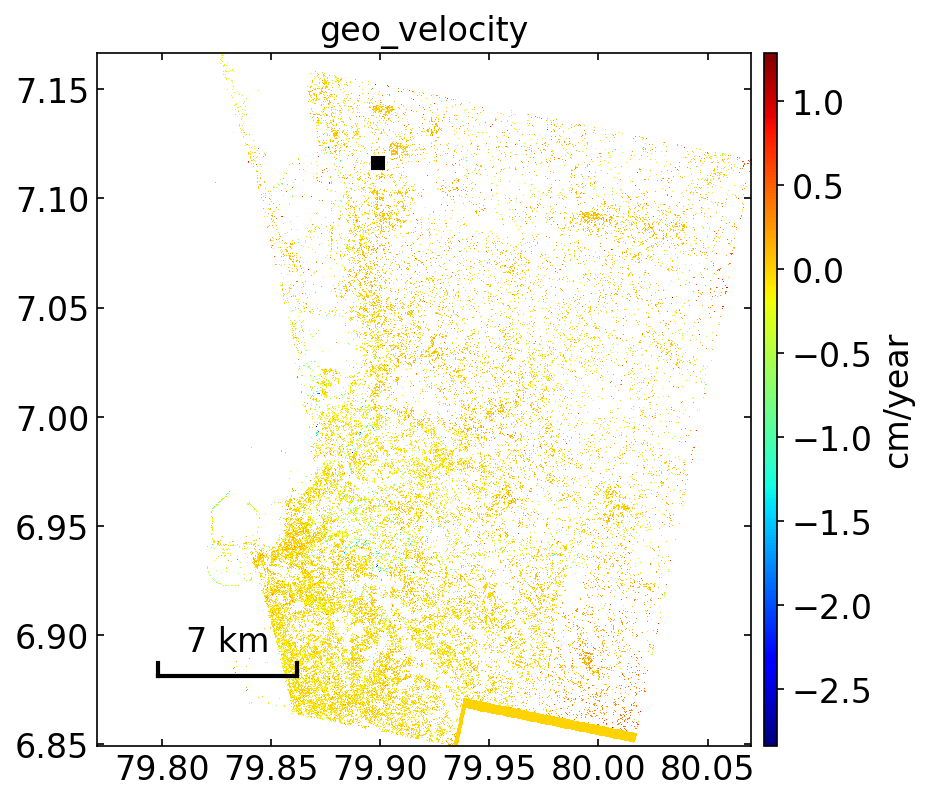

geo_velocity.kmz
Download file.
ColomboSenD19.template
ssaraopt.platform = SENTINEL-1A,SENTINEL-1B
ssaraopt.startDate = 20160101 # 2016 does not cover area
ssaraopt.relativeOrbit = 19
####################
#topsStack.boundingBox = 5.7 10.1 78.2 82.7
#topsStack.boundingBox = 5.7 8.749 78.2 82.7
topsStack.boundingBox = 6.5 7.5 78.2 82.7
topsStack.subswath = 1 2 3 # '1 2'
topsStack.referenceDate = 20230529
topsStack.numConnections = 2 # comment
topsStack.azimuthLooks = 7 # comment
topsStack.rangeLooks = 25 # comment
topsStack.filtStrength = 0.4 # comment
topsStack.unwMethod = snaphu # comment
topsStack.coregistration = auto # [NESD geometry], auto for NESD
####################
mintpy.load.autoPath = yes
mintpy.compute.cluster = local
mintpy.compute.numWorker = 32
mintpy.plot.maxMemory = auto #[float], auto for 4, max memory used by one call of view.py for plotting.
mintpy.troposphericDelay.method = no #[pyaps / height_correlation / base_trop_cor / no], auto for pyaps
mintpy.networkInversion.parallel = no #[yes / no], auto for no, parallel processing
mintpy.save.hdfEos5 = yes # [yes / update / no], auto for no, save timeseries to UNAVCO InSAR Archive format
mintpy.save.hdfEos5.subset = yes #[yes / no], auto for no, put subset range info in output filenam
mintpy.save.hdfEos5.update = no # [yes / no], auto for no, put XXXXXXXX as endDate in output filename
mintpy.save.kml = yes # [yes / no], auto for yes, save geocoded velocity to Google Earth KMZ file
mintpy.networkInversion.minTempCoh = 0.6
####################
miaplpy.load.processor = isce
minsar.miaplpyDir.addition = date #[name / lalo / no ] auto for no (miaply_$name_startDate_endDate))
miaplpy.subset.lalo = 6.66:7.11,79.848:80.012 #[S:N,W:E / no], auto for no
#mintpy.subset.lalo = 6.86:7.11,79.848:80.012 #[S:N,W:E / no], auto for no
#miaplpy.subset.lalo = 6.86:7.11,79.848:80.012 #[S:N,W:E / no], auto for no
minsar.miaplpyDir.addition = Kandy #[name / lalo / no ] auto for no (miaply_$name_startDate_endDate))
mintpy.subset.lalo = 7.18:7.40,80.525:80.725 #[S:N,W:E / no], auto for no
miaplpy.subset.lalo = 7.18:7.40,80.525:80.725 #[S:N,W:E / no], auto for no
minsar.miaplpyDir.addition = Colombo #[name / lalo / no ] auto for no (miaply_$name_startDate_endDate))
mintpy.subset.lalo = 6.875:7.125,79.82:80.02 #[S:N,W:E / no], auto for no
miaplpy.subset.lalo = 6.875:7.125,79.82:80.02 #[S:N,W:E / no], auto for no
miaplpy.load.startDate = 20190601 # 20200101
miaplpy.load.endDate = auto
mintpy.geocode.laloStep = 0.0002,0.0002

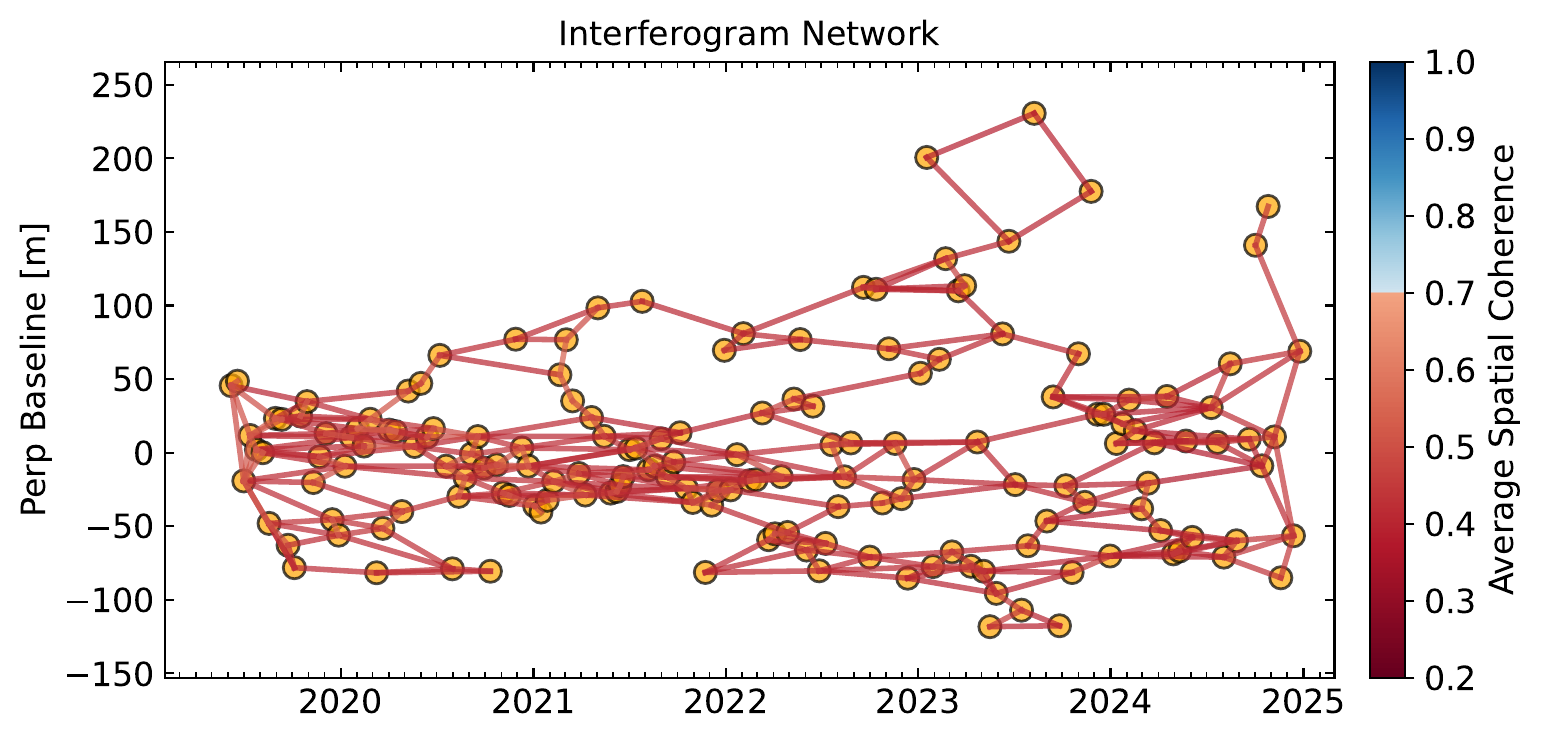

miaplpy.interferograms.networkType = delaunay # network
#############################################
miaplpy.multiprocessing.numProcessor = 40
miaplpy.inversion.rangeWindow = 24 # range window size for searching SHPs, auto for 15
miaplpy.inversion.azimuthWindow = 7 # azimuth window size for searching SHPs, auto for 15
miaplpy.timeseries.tempCohType = full # average # [full, average], auto for full.
miaplpy.timeseries.minTempCoh = 0.70 # auto for 0.5
mintpy.networkInversion.minTempCoh = 0.70 # auto for 0.5
#############################################
minsar.insarmaps_flag = True
minsar.insarmaps_dataset = filt*DS
